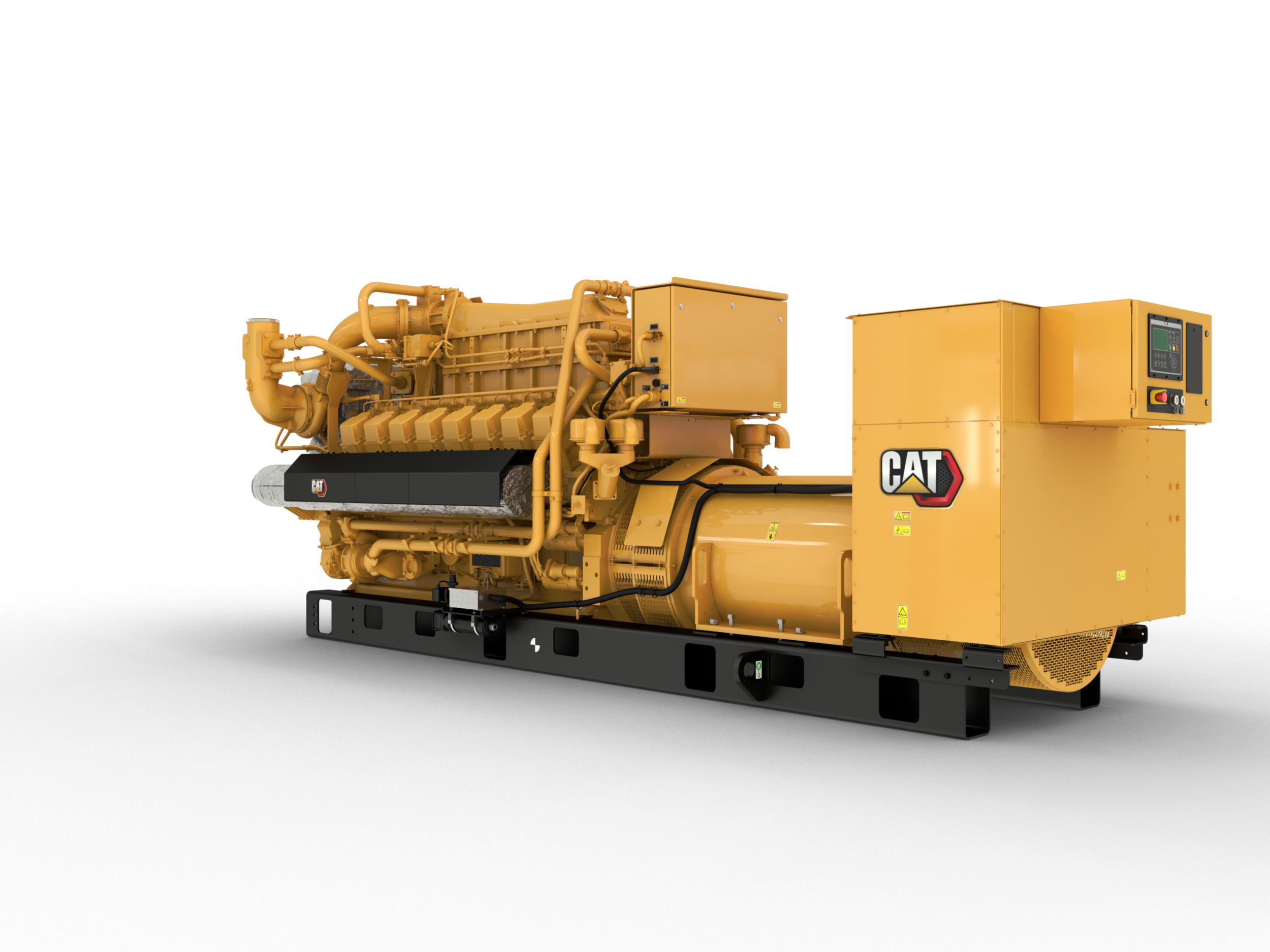

G3516C Generator Set
Continuous Rating 1660 ekW
Fuel Type Natural Gas
Maximum Electrical Efficiency 37.70%
Maximum Standby Rating 1500
Continuous Rating 1660 ekW
Frequency 50 / 60 Hz
Fuel Type Natural Gas
Maximum Electrical Efficiency 37.70%
Maximum Standby Rating 1500
RPM 1500/1800
Aspiration TA
Bore 6.7in
Displacement 4210in³
Engine Model G3516C
Stroke 7.5in
Dry Weight - Genset 31226lb
Height 92in
Length 219in
Width 72in
Two-element single-stage air cleaner with enclosure and service indicator
EMCP 4.3
Jacket water and SCAC driven pumps and bypass lines
2nd Stage SCAC-Cat Flange
Engine driven water pumps for jacket water and aftercooler
Jacket water and SCAC thermostats
ANSI/DN customer flange connections for JW inlet and outlet
Cat flanges on SCAC circuit
Integrated Sensing Module (ISM)
Cat-flanged face outlet on turbocharger
Provides exhaust port temperatures and stack temperature to customer supplied screen via CCM
Dry exhaust manifolds, insulated and shielded
24V ETR Gas Shutoff Valve
Engine installed, fuel metering valve
Throttle plate, 24V DC actuator, controlled by ECM
Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
Fuel Filter
Individual Cylinder Detonation Sensitive Timing (DST)
Electronic Ignition System (controlled by ECM)
Electronic fuel metering valve
Anti-condensation space heater
Busbar connections
Class H Insulation & Class F temperature rise
Reactive Droop
Permanent Magnet Excitation
3-phase brushless, salient pole
Caterpillar's Digital Voltage Regulator (CDVR) with 3-phase sensing and KVAR/PF control
SR4B
Winding temperature detectors
RH Service
Operation and maintenance manuals
Crankshaft Vibration Damper and Guard
Parts Book
24V starting motors
Vertical, horizontal dual element air cleaner
Enclosure mounting brackets and piping
Air cleaner with precleaner
Local NFPA99-110 Alarm Module w/LEDs
Synchronizing Module
Remote 24V 8/16 Light Annunciator
Engine Failure Relay
PL1000E/PL1000T Communications Module
Custom 8-Light Alarm Module
Inlet/Outlet connections
Jacket water coolant heater
Aftercooler air lines, aftercooler core replacement
Flexible Fittings
14" Flange Kit
406 mm Elbow Kits
406 mm flange kits
Mufflers (15/18/25 dBA Attenuation) and spark-arresting muffler with ANSI companion flanges
16" Spark Arresting Muffler
356-406mm Flange and Exhaust Expander
15/18/25 dBA Muffler Attenuation
207-276kPa, 30-40 psi gas knockdown regulator
14-69 kPa (2-10 psi) gas pressure regulator
24VDC Gas Shutoff Valve, Gas Knockdown Regulator
Fuel Filter, Gas Filter
Cable access box
8.7/15 kV Cross, Differential, Current Transformers (CCCT, DCT, CT)
Medium and high voltage generators and attachment
480/4160/13200 Volt Generator Options (60 Hz)
Generator air filter
Bearing temperature detectors
European Bus Bars
415/400/380, 3300/6600/11000 Volt Generator Options (50 Hz)
Annunciator Modules
Generator Removal
Low voltage extension box
Load share module
Special paint order
Tool set
US AID Emblem
Barring group
Digital diagnostic tool
60A, 24V charging alternator (requires engine driven pumps)
Battery removal
20A battery charger
Battery disconnect switch
Battery with cables and rack (shipped loose)
