Gas Standby Rating 2500 ekW @ 0.8pf
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Emissions/Fuel Strategy U.S. EPA Stationary Non-Emergency Certified
RPM 1800 rpm
Compression Ratio 11.5
Emissions/Fuel Strategy U.S. EPA Stationary Non-Emergency Certified
Frequency 60 Hz
Fuel Type Natural Gas, Hydrogen Blend (up to 5%)
Gas Standby Rating 2500 ekW @ 0.8pf
RPM 1800 rpm
Aspiration TA
Bore 6.7in
Displacement 5956in³

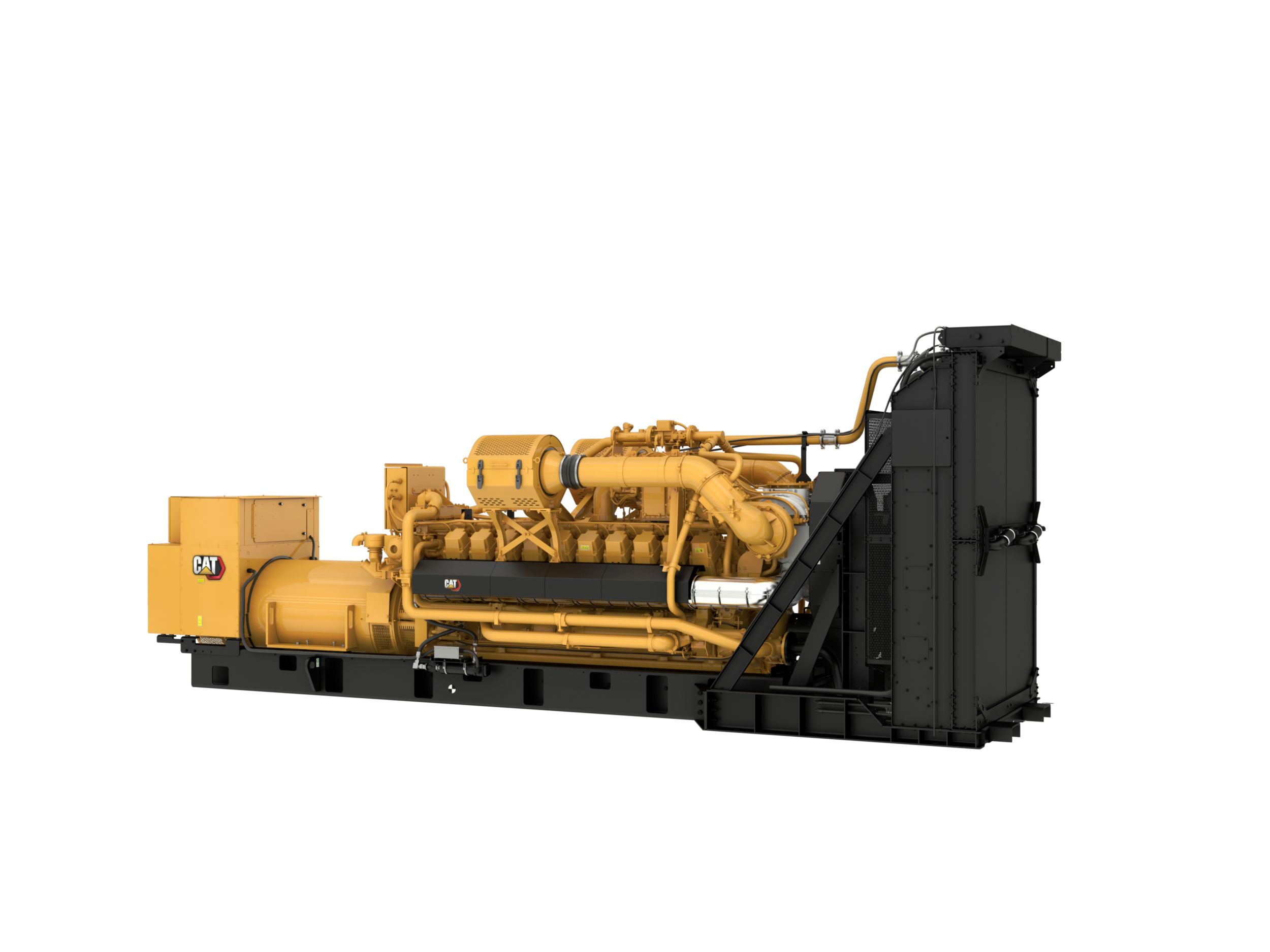

Engine Model G3520
Stroke 8.5in
Height 128in
Length 336in
Weight 48500lb
Width 94in
Two-element single-stage air cleaner with enclosure and service indicator
Cat ECS 100
Jacket water and SCAC engine-driven pumps
Jacket water and SCAC thermostats
Cat-flanged face outlet on turbocharger
Individual exhaust port and turbocharger outlet wired to integrated temperature sensing module (ITSM) with GCEM providing alarms and shutdowns
Dry exhaust manifolds, insulated and shielded
Gas pressure regulator
Engine-installed electronic control valve
Fuel system is sized for 31.5 to 47.2 MJ/NM3 dry pipeline natural gas with pressure of 10.2 to 34.5KPa to the engine fuel control valve
24V DC energized-to-run (ETR) gas shutoff valve
Throttle plate, 24V DC actuator, controlled by GECM
Crankshaft vibration damper and guard
Operation and maintenance manuals
RH Service
Paint- Caterpillar Yellow with high gloss black rails and radiator
Parts book
SR5
Permanent Magnet Excitiation
NEMA Class H insulation
Winding temperature detectors
Integrated voltage regulator (IVR)
Anti-condensation space heater
Battery with cables and rack (shipped loose)
24V starting motors
Electric Starter
Jacket water heater
ADEM A4
Electronic Ignition System (controlled by ADEM A4)
Individual Cylinder Detonation Sensitive Timing (DST)
Air cleaner with precleaner
Local alarm module
EMCP 4.4
Remote annunciator
Remote PC monitoring
Engine failure relay
Local PC monitoring
2000A, 2500A, 3000A 3 Pole, UL-100% Rated Masterpact Circuit Breakers
100% rated, 3-pole (UL/CSA/IEC) 5th Digit Rating
3-pole (IEC 947-2 rated)
Frame mounting
1600A, 2000A 3 Pole, UL-100% Rated R-Frame Circuit Breakers
S LSI, G LSIG, P LSIG-P, 4th Digit Type
Coolant level drain line with valves, fan with guard
Package mounted radiator
305 mm (12 in.) muffler
305 mm (12in.) elbow
18, 25 dBA Attenuation
305 mm (12 in.) flange
305mm (12 in) spark arresting muffler
3, 0-100 kPag, 4-20mA gas train pressure sensors
Digital diagnostic tool
Low voltage extension box
Bearing temperature detectors
European bus bars
Cable access box
Generator air filter
45A, 24V charging alternator (requires engine driven pumps)
20A, 24VDC battery charger
60 Hz: USA
