Cat?� C13 Industrial Power Unit

Cat?� C13 Industrial Power Unit

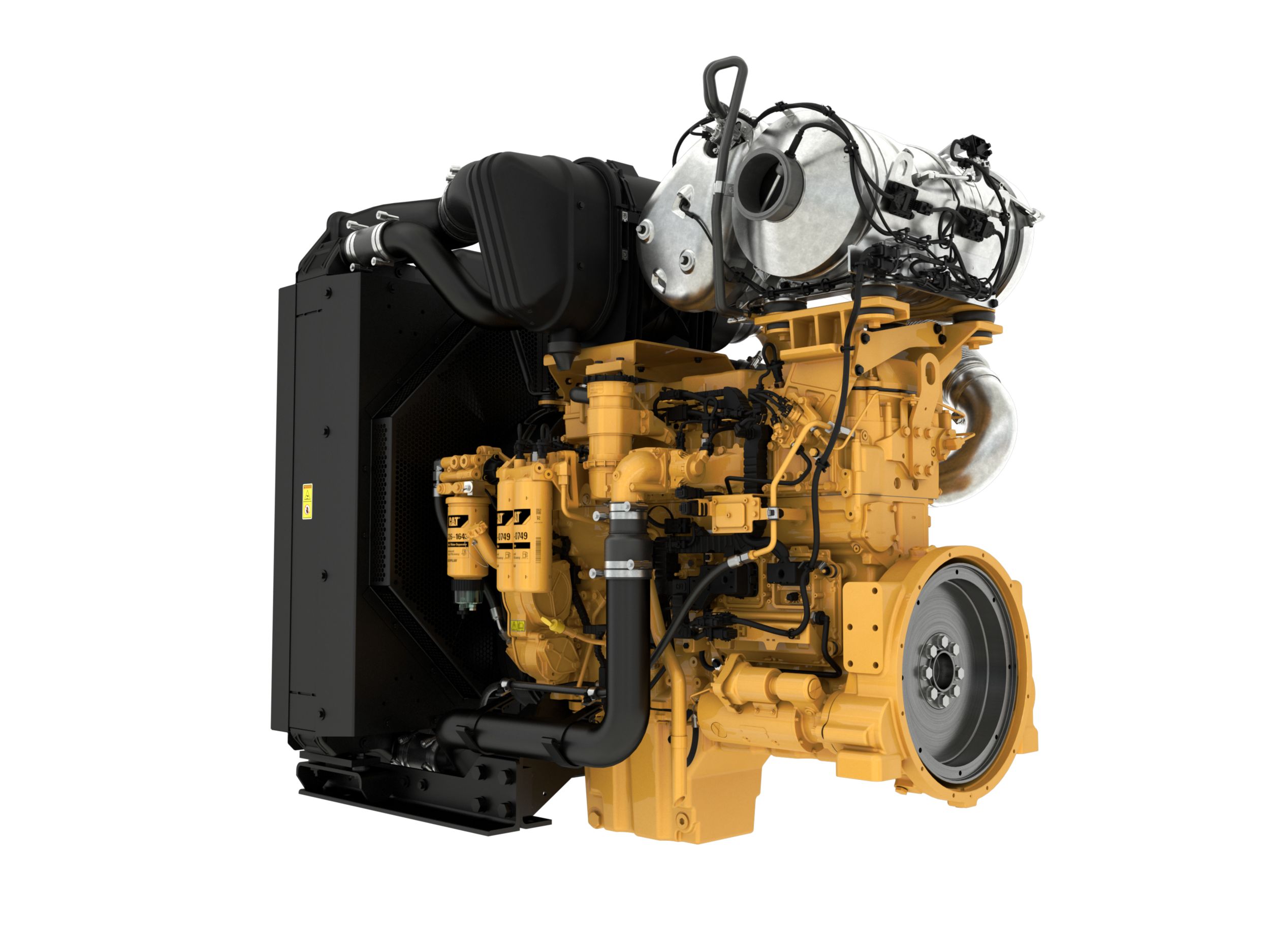

The Cat?� C13B Industrial Diesel Power Unit is offered in ratings ranging from 340-430 kW (456-577 hp) @ 1800-2100 rpm and meet U.S. EPA Tier 4 Final, EU Stage V emission, China Nonroad Stage IV, Japan 2014, and Korea Stage V standards. Conveniently pre-configured for a wide range of applications, the Cat?� Industrial Power Unit is a complete power package containing a radiator, flywheel, alternator and alternator wiring completely pre-assembled for fast, straightforward installation in a number of OEM, customer and packager applications. These fuel efficient units are ready made for irrigation, industrial, mining and other pump applications.

  • Maximum Power 577 HP

  • Emissions EU Stage V, U.S. EPA Tier 4 Final, Korea Stage V, Japan 2014, China NRIV

  • Rated Speed 1800-2100 rpm

  • Minimum Power 456 HP

Request a quote

Product Specifications

Specifications

Power Rating

  • Maximum Power 577HP

  • Minimum Power 456HP

  • Rated Speed 1800-2100 rpm

Emission Standards

  • Emissions EU Stage V, U.S. EPA Tier 4 Final, Korea Stage V, Japan 2014, China NRIV

General

  • Aftertreatment DOC+DPF+SCR

  • Aspiration Turbocharged Aftercooled (TA)

  • Bore 5.1in

  • Compression Ratio 15.8:1

  • Displacement 762.8in³

  • Engine Configuration Inline 6, 4-Stroke-Cycle Diesel

  • Rotation from Flywheel End Counterclockwise

  • Stroke 6.2in

Power Unit Dimensions

  • Height 71in

  • Length 79in

  • Weight 3935lb

  • Width 46in

Features

Equipment

Standard Equipment

  • Turbocharged

  • Air-to-Air Aftercooled

  • Mid-mount turbocharged system with front and rear exhaust configurations (Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), China Nonroad IV, Korea Stage V)

  • Electronic control system

  • Over-foam wiring harness

  • Automatic altitude compensation

  • Power compensated for fuel temperature

  • Configurable software features

  • Engine monitoring system SAE J1939 broadcast and control

  • Integrated Electronic Control Unit (ECU)

  • Remote fan control

  • Vertical or RH thermostat outlet

  • Centrifugal water pump

  • Guidance on cooling system design available through your dealer to ensure equipment reliability

  • SAE No. 1 flywheel housing

  • Available SAE No. 1 power take off with optional SAE B or SAE C power take off drives. Engine power can also be taken from the front of the engine with optional attachments. (Tier 4 Final, Stage V).

  • MEUI injection

  • Primary fuel filter

  • Secondary fuel filters

  • Fuel transfer pump

  • Electronic fuel priming

  • Open crankcase ventilation system

  • Oil cooler

  • Oil filler

  • Lube oil filter

  • Oil dipstick

  • Gear driven oil pump

  • Choice of front, rear or center sumps

  • Open crankcase ventilation system with fumes disposal (optional OCV filter system) (Tier 4 Final, EU Stage V, Japan 2014 (Tier 4 Final), China Nonroad Stage IV, Korea Stage V)

  • SAE B or SAE C power take off (PTO) drives. Engine power can also be taken from the front of the engine on some applications.

  • Paint: Cat yellow

  • Clean Emissions Module (CEM), consisting of Diesel Particulate Filter (DPF) and Diesel Oxidation Catalyst (DOC)

  • Pump Electronic Control Unit (PETU)

  • Selective Catalytic Reduction (SCR)

  • Available in 12V or 24V systems
