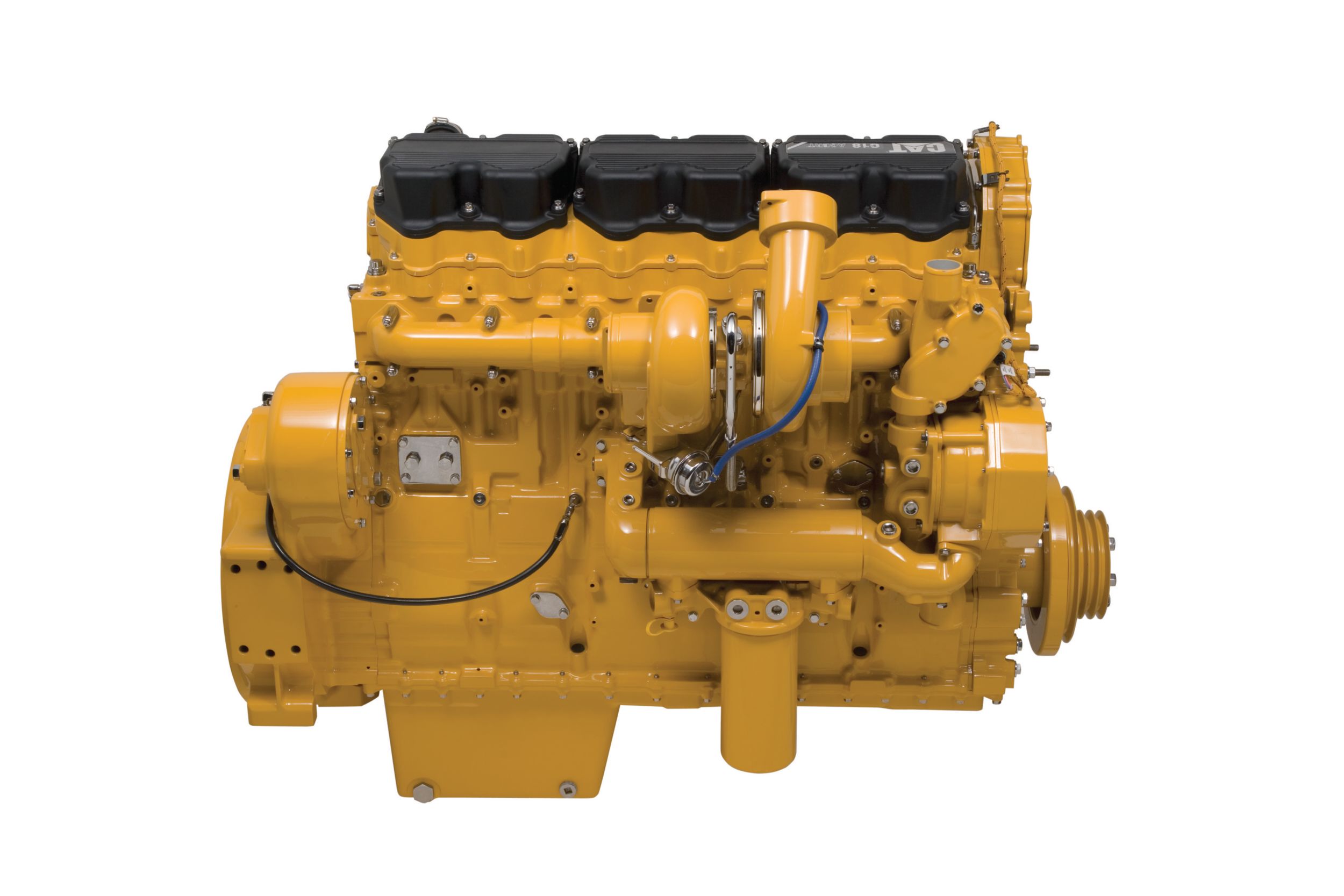

Cat C18 ACERT engines are the ideal solution for your demanding operations in the oilfield. Decades of field operation and intense research and development allow Cat C18 ACERT engines to deliver excellent performance with low operating costs and emissions. Equipment powered by C18 ACERT engines include, pump skids, nitrogen units, acidizing units, cementing units, blenders, and hydraulic power units. Cat engines are backed by the worldwide network of Cat dealers ready to support your operation with technical support, service, parts, and warranty. C18 ACERT engines, with ratings: 429-522 bkW (575-700 bhp) @ 1800-2100 rpm, meet China Stage II, U.S. EPA Tier 3 equivalent, EU Stage IIIA equivalent emission standards. Ratings: 570-597 bkW (765-800 bhp) @ 1800-2100 rpm meet U.S. EPA Tier 2 equivalent emission standards. Ratings below 560 bkW (751 bhp) are available using U.S. EPA and EU Flexibility, and for other global regulated and non-regulated areas. Ratings above 560 bkW (751 bhp are available using U.S. EPA Flexibility and for other global regulated and non-regulated areas.
Maximum Rating 800 BHP
Emissions EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
Displacement 1100 in³
Minimum Rating 575 BHP
Aspiration Turbocharged-Aftercooled
Bore 5.71in
Displacement 1100in³
Flywheel Teeth 136 (SAE No. 0), 113 (SAE No. 1)
Flywheel and Flywheel Housing SAE No. 0 or SAE No. 1
Governor and Protection ADEM A3
Maximum Rating 800BHP
Minimum Rating 575BHP
Rotation from Flywheel End Counterclockwise
Stroke 7.2in
Emissions EPA and CARB Non-Road Mobile Tier 3, EU Stage IIIA
Height 49.5in
Length 54.7in
Weight 2807lb
Width 36.2in
Cooling System 13.2gal (US)
Single turbocharger, mid-mounted, inlet 152.4 mm (6 in), hose connection
Dual turbocharger, front and rear inlet 127.0 mm (5 in.), hose connection
Electronic governing, PTO speed control
Programmable ratings
Cold mode start strategy
Automatic altitude compensation
Power compensation for fuel temperature
Programmable low and high idle and TEL
Electronic diagnostics and fault logging
Engine monitoring and protection system (speed, temperature, pressure)
J1939 Broadcast (diagnostic, engine status, and control)
Thermostats and housing — outlet vertical
Jacket water pump — gear-driven, centrifuga
RH front water pump inlet
All plugs/fittings are STOR for lines gp water
Exhaust manifold — dry
Single turbo — front-facing turbo exhaust, full marmon connection, maximum load 10 kg for direct connection to turbo
Dual turbo — exhaust elbow, dry 203 mm (8 in)
See Mandatory Options
Electronic unit injector
Fuel filter, secondary, mid-mount (LH 2 micron high performance)
Fuel transfer pump, LH front
Fuel priming pump, LH mid-mount
Fuel sample valve, mounted on fuel filter base.
Crankcase breather — rear valve cover
Oil cooler — RH (dual)
Oil filter — RH, LH
Oil pan — front sump
Oil dipstick — LH front
Oil pump
Front support (shipping only)
Crankshaft pulley, 203.2 mm (8 in), 3 grooves 292.1 mm (11.5 in) 1 groove, all 15.9 mm (.63 in) width
Hydraulic pump drive, SAE A, 11-tooth
Vibration damper
Paint — Cat yellow
Lifting eyes
Automatic variable timing, electronic
Electronic installation kit 70-pin connector (connectors, pins, sockets)
Throttle position sensor
Single turbo only — exhaust system (front or rear)
Flywheel housing or rear PTO
Primary filter/water separator
Air compressor governor
Expansion chambers
Air cleaners
Air lines
Charging alternators
Alternator mountings
Alternator wiring
Circuit breakers and mountings
Alternator belt guard
Radiator
Fan drive with radiator packages
Fan height instructions
Vee belts
Aftercooler lines with Caterpillar installed radiator
Single turbo configuration rear-facing exhaust
Single turbo configuration rear-facing exhaust
Aftercoooler lines
Suction fan adapters
Blower fan adapter
Blower fan
Suction fan
Fan belt
Coolant level sensor
Dry charge coolant conditioners
Turbo exhaust connection
Flexible fittings
Elbows, flange, clamp, pipes
Exhaust adapters
Manifold
Mufflers
Flexible fuel lines
Fuel filter location
Fuel cooler
Water separator
Gauges and instrument panels
Oil pans
Drain and cover
Oil level gauge
Remote oil filters
Oil filters
Lubricating oils
Structural steel base
Front and rear engine support
Rear enclosed clutches
Hydraulic pump drives
Hydraulics gear pumps
Clutch supports
Crankshaft pulleys
Air shutoff
Air starting motors
Air pressure regulator
Air silencer
Start switch
Electric starting motors — 12V, 24V
Battery sets - 24V
Battery cable and rack
Starting aids
Transmission water lines
