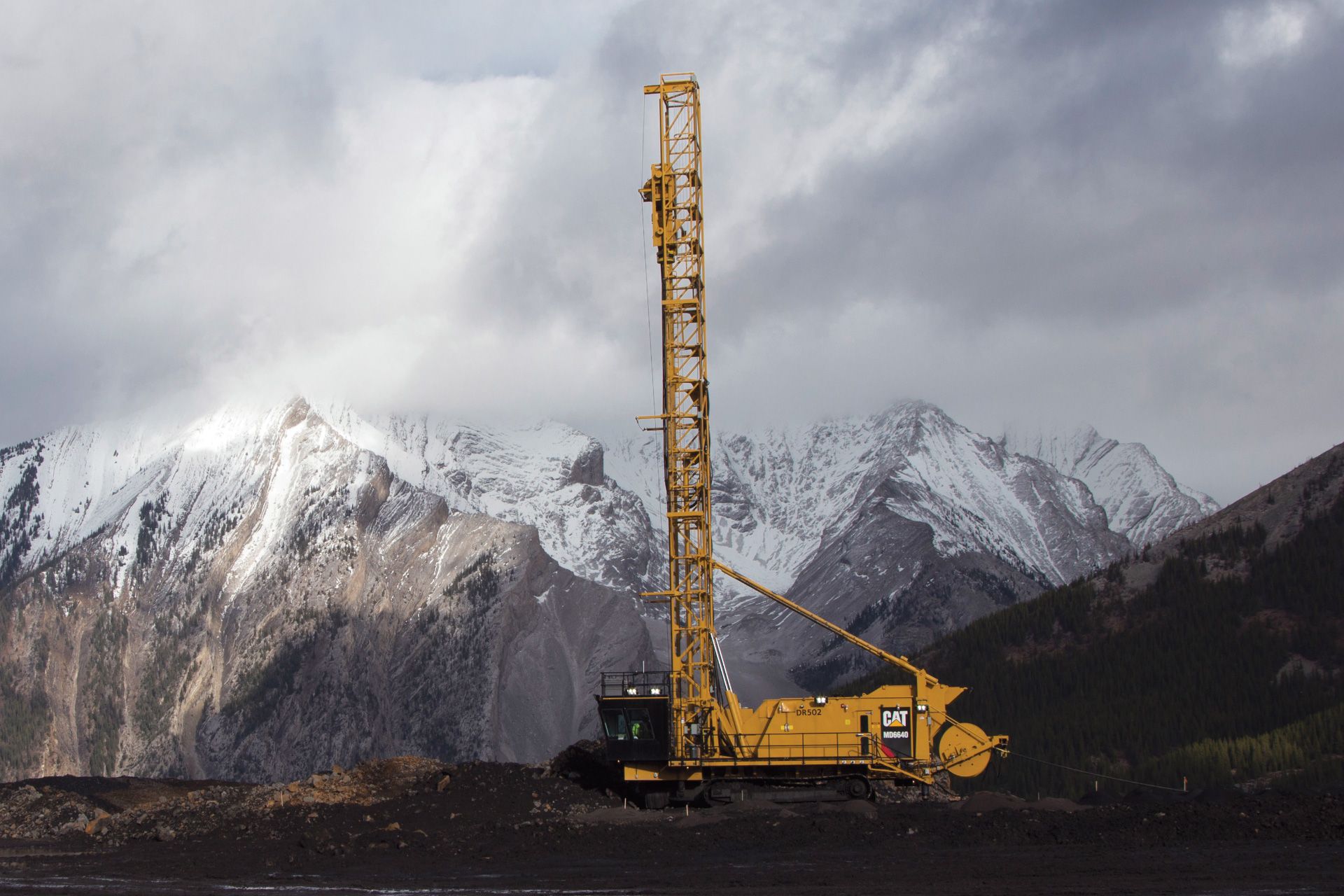

Caterpillar hard rock drill in a mine

Cat Command for Drilling

Cat Command for Drilling

Cat MineStar Command for drilling ensures that every hole is accurately placed, drilled to the proper elevation and angle, and able to stand up until blasting. A range of capabilities lets site managers configure and automate the drilling system to their budgets and needs.
Request a quote

Features

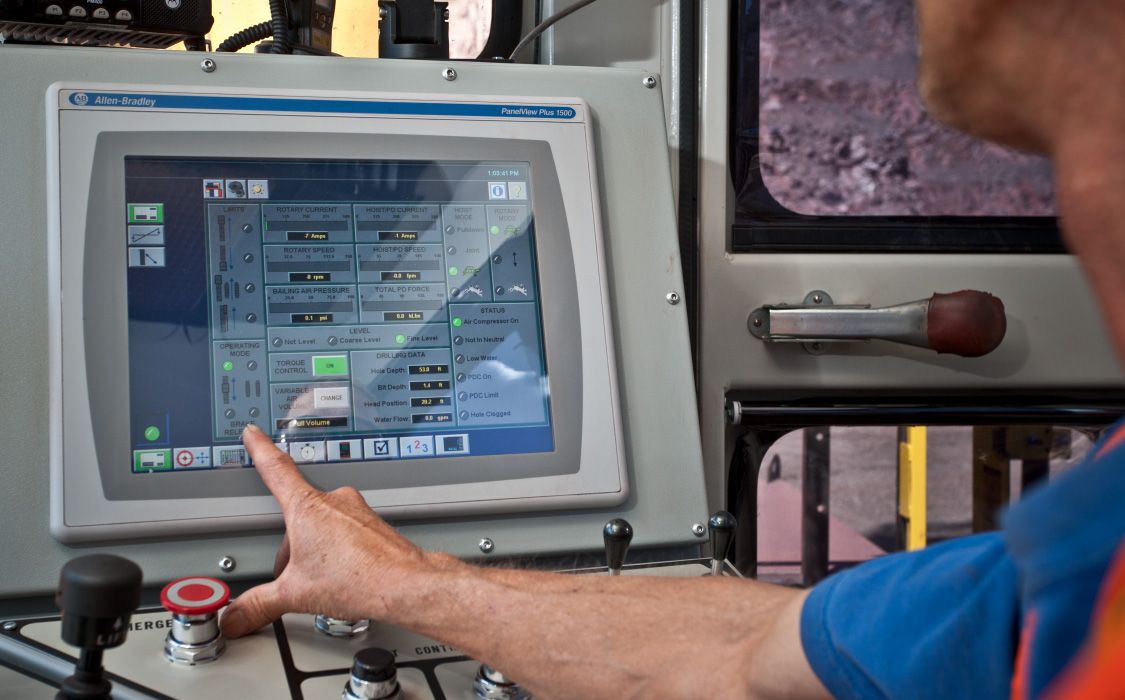

Factory-Ready for Manned Automation

    Cat drills deliver consistency right out of the factory, with automation features for manned automation. These features automate three primary drill processes:
    • Leveling — Provides safe, solid footing on uneven ground.
    • Mast positioning — Raises the mast and locks it at the proper angle.
    • Drill cycle — Maintains optimum bit speeds and pressures for a quality hole that stands up until it can be loaded with explosives.
    Factory-Ready for Manned Automation

Cat® MineStar™ Terrain for Drilling

    A requirement for MineStar Command for drilling, Terrain for drilling uses state-of-the-art guidance technologies to help operators drill holes in the exact location and to the exact elevation specified by the plan, resulting in smoother floors and safer and more effective blasting.
    Cat® MineStar™ Terrain for Drilling

Operator Mission Assist

    Operator Mission Assist automates the entire drill cycle including tramming for a single row of holes. The operator is required to stay in the cab of the machine to monitor the area around the drill, ensuring it is safe to autonomously move between holes. Operator Mission Assist is a good solution for miners who want the consistent performance of autonomous drilling with a lower buy-in cost.
    Operator Mission Assist

Semi-Autonomous Single Row Drilling

    This system automates the entire drilling cycle for one row, including autonomous tramming. Flexible and simple, the system makes drilling automation easy to implement and more accessible for all kinds of operations. Semi-Autonomous drilling can allow operators to manage and monitor multiple autonomous drills either from a line-of-sight tablet or from the non-line-of-sight remote operator station.
    Semi-Autonomous Single Row Drilling

Autonomous Pattern Drilling

    This feature automates drill cycles and tramming for the entire blast pattern. It enables one operator to manage drill operations across the mine site, working from a remote operator station located on-site or at an off-site command center.
    Autonomous Pattern Drilling

Benefits

    • Enhances fragmentation consistency by precisely executing drill patterns.
    • Ensures accurate hole placement— to the right location and toe elevation.
    • Ensures better-shot material, which means smoother downstream operations.
    • Allows removal of operators from dust and other hazards.
    • Improves operator comfort, recruitment and retention.
    • Simplifies training to make new operators productive more quickly.
    • Through improved consistency, reduces the costs associated with fuel, drill tools and explosives.
    • Improves equipment utilization, productivity and operator effectiveness.
    • Allows adjustment of collar elevations on uneven ground to ensure consistent toe elevations.
    • Reduces non-drilling time, enabling the machine to spend more time drilling.
    • Preserves machine life and reduces G.E.T. tool waste by limiting operation to be within the OEM parameters for both the machine and the drill tools.
    • Enables consistent drilling from operator to operator on any terrain.
    Benefits

Integration

    MineStar is a fully integrated system between Fleet, Terrain, Detect, Health and Command.

    • Operator Mission Assist is fully integrated into the base machine displays of Cat MD6250 and MD6310 drills.
    • The Semi-Autonomous user interface is built on the same user interface platform as Cat drills, enabling a common user interface between Command and manned drill products.
    • The Remote Operator Station has the same chair, joysticks and keypads as the new Cat drill line. It also displays the base machine screens to the operator from the remote operator station.
    Integration

Interoperability

    While putting Cat technology on Cat equipment is the idea scenario, Command for drilling is not limited to Cat machines. The system is interoperable with multiple brands of drills.

    Caterpillar uses a drill interface to allow for autonomous commands to be sent to the base machine, while maintaining the integrity of the base machine manual functions.

    In addition to Command for drilling, Terrain for drilling can also be installed on multiple brands of drills.
    Interoperability

Scalability

    Command for drilling follows a building block approach — from remote control technologies to Operator Mission Assist, from Semi-Autonomous to Fully Autonomous — which allows sites to adopt automated drilling at different levels. This approach is unique to the industry.
    Scalability
