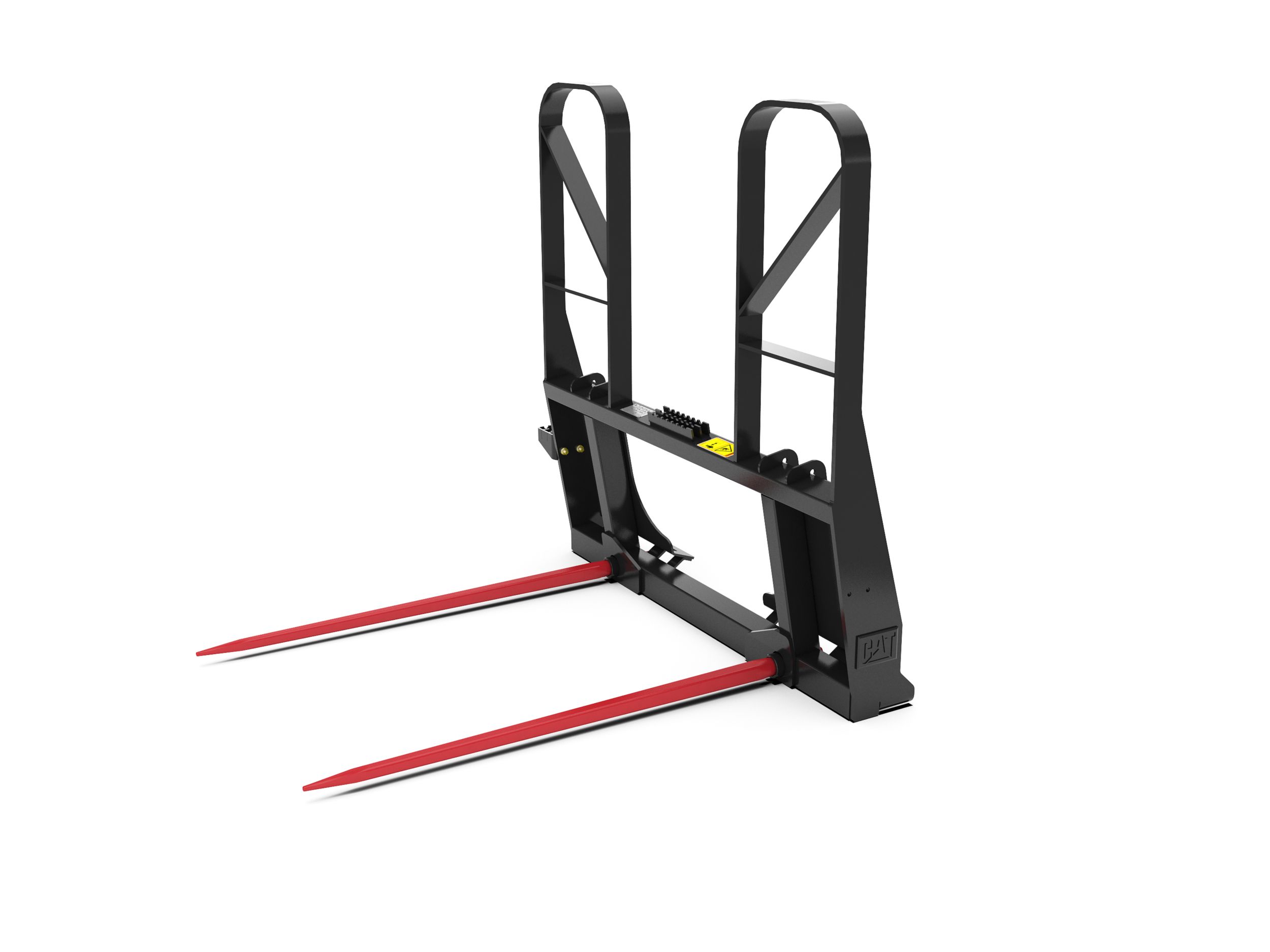

Cat® Bale Spears are designed for loading and carrying of round and square baled materials. Bales of wheat, hay and other materials can be transported for livestock feed, bedding or carrying for loading, unloading, or moving to storage. Offering optimal rigidity and capacity, the Bale Spear work tools are designed for a long working life.
Overall Width 55.4 in
Overall Height 51.8 in
Capacity 3007.1 lb
Usable Tine Length 44.9 in
Capacity 3007.1lb
Overall Depth 53in
Overall Height 51.8in
Overall Width 55.4in
Tine Spacing 28.3in
Usable Tine Length 44.9in
Weight 266.8lb
