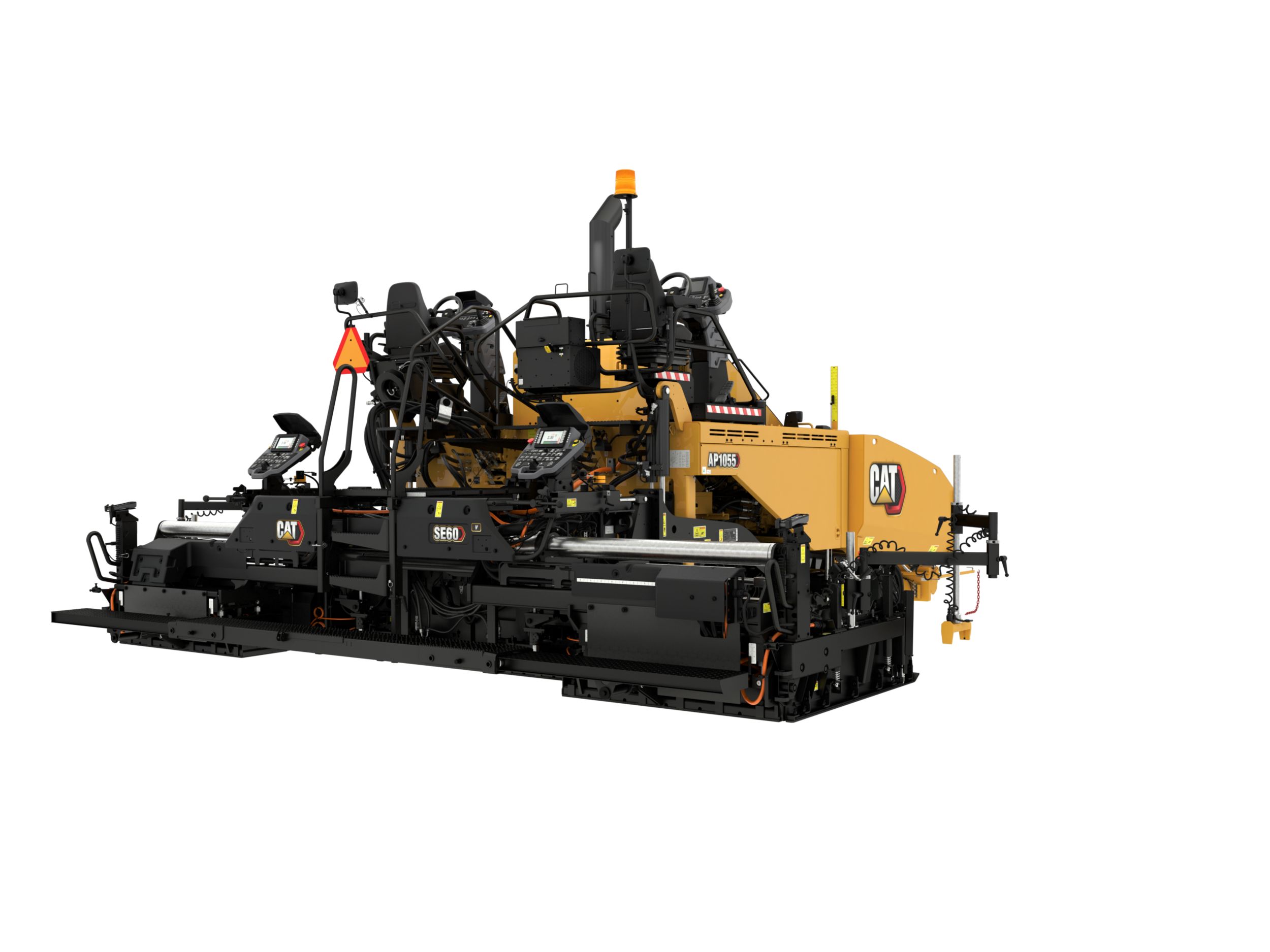

AP1055 Mobil-Trac Paver

AP1055 Mobil-Trac Paver

The AP1055 is a high-production rubber track paver that excels on airports runways, interstates, highways, and other large jobsites. Its high travel speed, flotation, and traction deliver superb mobility.

  • Paving Range with SE60 V 3.0 m - 7.65 m (9' 10" - 25')

  • Operating weight with SE60 V 45087 lb

  • Maximum Throughput Capacity 1602 ton(US)/h

  • Engine Power (1) 225 hp

Request a quote

Product Specifications

Specifications

Dimensions

  • Operating Length 22.3ft

  • Operating Width 10.8ft

  • Overall Height 12.25ft

  • Paving Range with SE60 FM 3.0 m - 7.8 m (10' - 25' 6")

  • Paving Range with SE60 V 3.0 m - 7.65 m (9' 10" - 25')

  • Paving Range with SE60 V XW 3.0 m - 10 m (10' - 33')

  • Paving Range with SE60 VT XW 3.0 m - 10 m (10' - 33')

  • Transport Height 9.7ft

  • Transport Length 21.9ft

  • Transport Width 9.8ft

Weights

  • Operating weight with SE60 FM 45352lb

  • Operating weight with SE60 V 45087lb

  • Operating weight with SE60 V XW 46573lb

  • Shipping Weight - Paver Only 36800lb

Operating Specifications

  • Inside Turn Radius 1.5ft

  • Maximum Paving Speed 210ft/min

  • Maximum Paving Speed - With Tamper Bar Screed 82ft/min

  • Maximum Throughput Capacity 1602ton(US)/h

  • Maximum Travel Speed 9mile/h

Engine

  • Engine Model (1) Cat C7.1

  • Engine Power (1) 225hp

Service Refill Capacities

  • Cooling System 12gal (US)

  • DEF Tank 5gal (US)

  • Fuel Tank Capacity 92gal (US)

  • Hydraulic Oil Tank 58gal (US)

  • Washdown Tank 7.9gal (US)

Features

Equipment

Standard Equipment

  • Dual operating stations

  • Steering guide

  • Ventilation System

  • Product Link Elite 641_cellular

  • Automatic engine speed control

  • Cat C7.1 Engine

  • Variable speed cooling fan

  • Eco-mode

  • Extended life hydraulic oil

  • 70 kW generator

  • Cat Electronic Technician

  • Machine security system

  • Remote jump start receptacle

  • Automotive type fuse system

  • 12-volt power receptacle

  • 100 amp alternator

  • 1400 CCA batteries

  • Contact-type material feed sensors

  • Adjustable push-roller

  • Extended-life coolant

  • Remote access drains

  • Scheduled Oil sampling ports

  • Sight gauges

  • Back-up alarm

  • Horn

  • Working lights

  • Mirror package

  • Vandal covers

Optional Equipment

  • Cat Grade Control

  • Hopper level and material height sensor

  • Pave start assistant

  • Product Link Elite 631_satellite

  • Thermal mapping

  • Air-ride seat

  • Hard top canopy

  • Deceleration pedal

  • Friction steering

  • Heated seats

  • Side shields

  • Towpoint indicator (2nd)

  • Umbrella

  • Screen visor

  • Windshield

  • Ballast_front weights

  • Mobil-trac belt - smooth

  • Mobil-trac belt - tread bar

  • Auxiliary power panel_6.6 kW

  • Auger extension

  • Leveling devices

  • Mainframe extensions_manual

  • Mainframe extensions_power

  • Sonic feed sensors

  • Power folding front apron

  • Truck hitch

  • Washdown pump and reel

  • Washdown tank

  • Wide width paving packages

  • Service repair kits

  • Uptime kits

  • SE60 V Screed

  • SE60 FM Screed

  • SE5 VT XW Screed

  • SE60 V XW Screed

  • Sonic Averaging Beam

  • Rigid Ski, 9.15 m (30') and 12.2 m (40')
