CP11 Vibratory Soil Compactor

CP11 Vibratory Soil Compactor

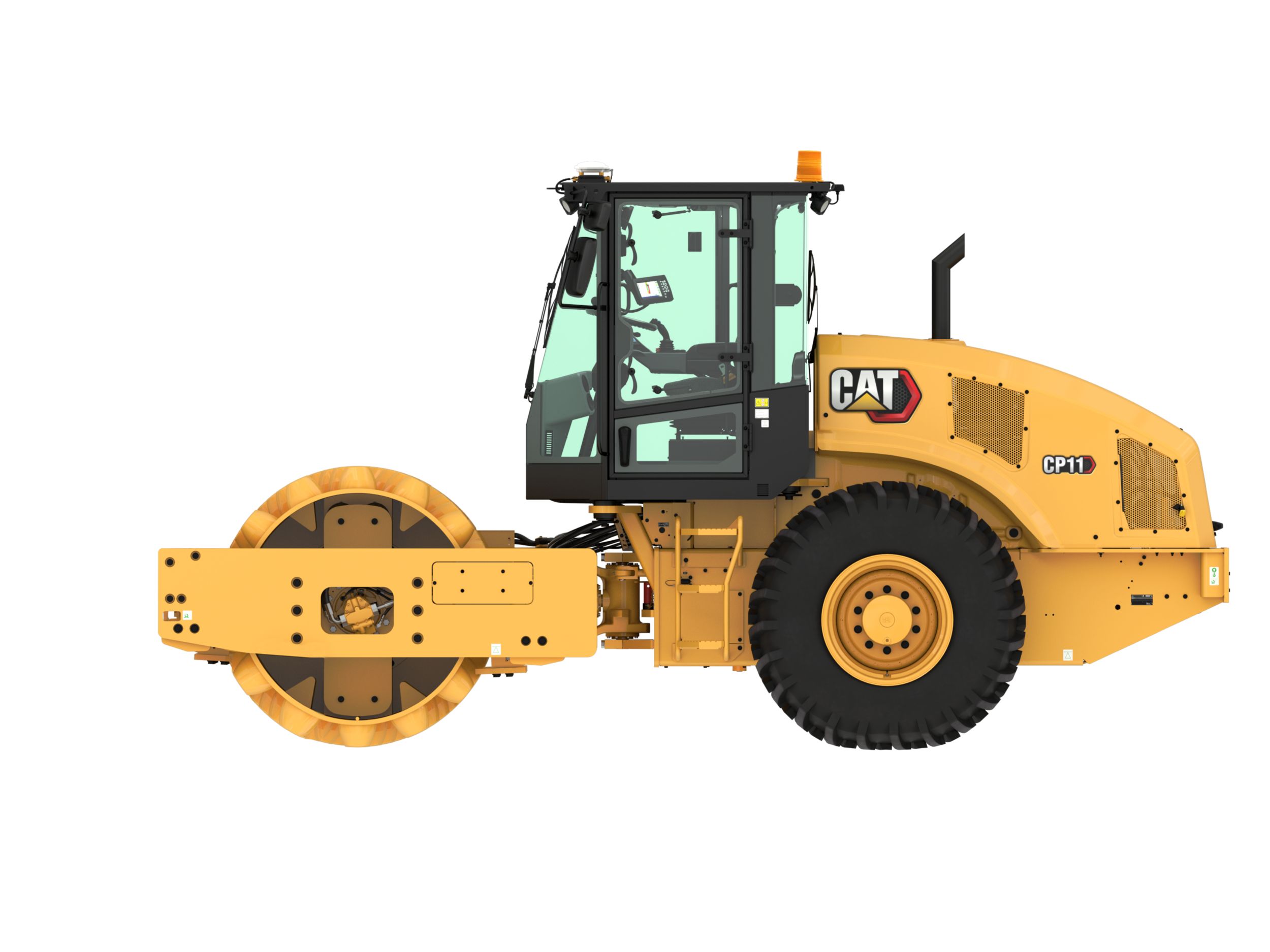

The Cat® CP11 Vibratory Soil Compactor features a padfoot drum and is ideally suited for cohesive and semi-cohesive soil applications. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.

  • Operating Weight - With Cab 25095 lb

  • Compaction Width 84 in

  • Gross Power 132.8 hp

  • Engine Power - ISO 14396 131.3 hp

Request a quote

Product Specifications

Specifications

Weights

  • Note (1) Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.

  • Operating Weight - With Cab 25095lb

  • Operating Weight - With ROPS/FOPS Canopy 24652lb

  • Weight - Drum with Cab 14099lb

  • Weight - Drum with ROPS/FOPS Canopy 13894lb

Dimensions

  • Compaction Width 84in

  • Drum Diameter - Over Pads 61in

  • Maximum Height 10.2ft

  • Overall Length 19.2ft

  • Overall Width 7.5ft

  • Wheel Base 9.5ft

Engine

  • Bore 4.1in

  • Emissions U.S. EPA Tier 4 Final

  • Engine Model Cat® C4.4

  • Engine Power - ISO 14396 131.3hp

  • Gross Power 132.8hp

  • Net Power - ISO 9249 109.8hp

  • Net Power - SAE J1349 108.4hp

  • Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.

  • Stroke 5in

Vibratory System

  • Centrifugal Force - Maximum 57757lb

  • Centrifugal Force - Minimum 28374lb

  • Nominal Amplitude - High 0.071in

  • Nominal Amplitude - Low 0.035in

  • Variable Frequency Option Range 23.3 - 30.5 Hz (1400-1830 vpm)

  • Vibratory Frequency - Standard 1830VPM

Operating Specifications

  • Curb Clearance 21.7in

  • Ground Clearance 17.3in

  • Travel Speed - Maximum 6.7mile/h

  • Turning Radius - Inside Drum Edge 12.1ft

Service Refill Capacities

  • Axle and Final Drives 4.8gal (US)

  • Cooling System 8.3gal (US)

  • DEF Tank 5gal (US)

  • Eccentric Weight Housings (combined) 6.9gal (US)

  • Engine Oil - With Filter 2.3gal (US)

  • Fuel Tank Capacity 69.7gal (US)

  • Hydraulic Tank 13.2gal (US)

Sustainability

  • Recyclability 96%

Features

Equipment

Standard Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat

  • Adjustable Seat with Integrated Console

  • LCD Display with Lockable Vandalism Guard

  • Adjustable Tilting Steering Column with Integrated Cup Holders

  • Rear Vision Camera System with Color Touchscreen Display

  • High Visibility 50 mm (2 in) Seat Belt

  • 12-volt Power Outlet

  • Horn, Backup Alarm

  • Padfoot Drum - Oval or Square Pads

  • Pod-Style Eccentric Weight Housings

  • Dual Amplitude, Single Frequency

  • Auto-vibe Function

  • Dual Adjustable Steel Scrapers

  • VisionLink®

  • Cat® C4.4 Engine

  • Air Cleaner, Dual Element

  • Three Speed Throttle Switch including Eco-mode

  • Automatic Speed Control (ASC)

  • Dual Propel Pumps; One for Drum Drive, One for Rear Axle

  • Fuel Filter, Water Separator, Priming Pump, Water Indicator

  • Tilting Radiator / Hydraulic Oil Cooler

  • Dual Braking System

  • Two-Speed Hydrostatic Transmission

  • Limited Slip Differential

  • 24 volt Electrical System

  • 100 ampere Alternator

  • 750 Cold-cranking Amps Battery Capacity

  • Lockable Engine Enclosure, Hydraulic and Fuel Tanks

  • Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level

  • S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant

  • Halogen Working Lights (4)

Optional Equipment

  • Standard and optional equipment may vary. Consult your Cat dealer for details.

  • ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors

  • Sun Visor (Cab)

  • Roll-Down Screen (Cab)

  • High Visibility 76 mm (3 in) Seat Belt

  • Variable Frequency

  • Measure - Machine Drive Power (MDP)

  • Transmission Guard

  • Factory Filled Bio-Hydraulic Oil

  • Halogen Working Lights (8)

  • Amber Rotating Beacon
