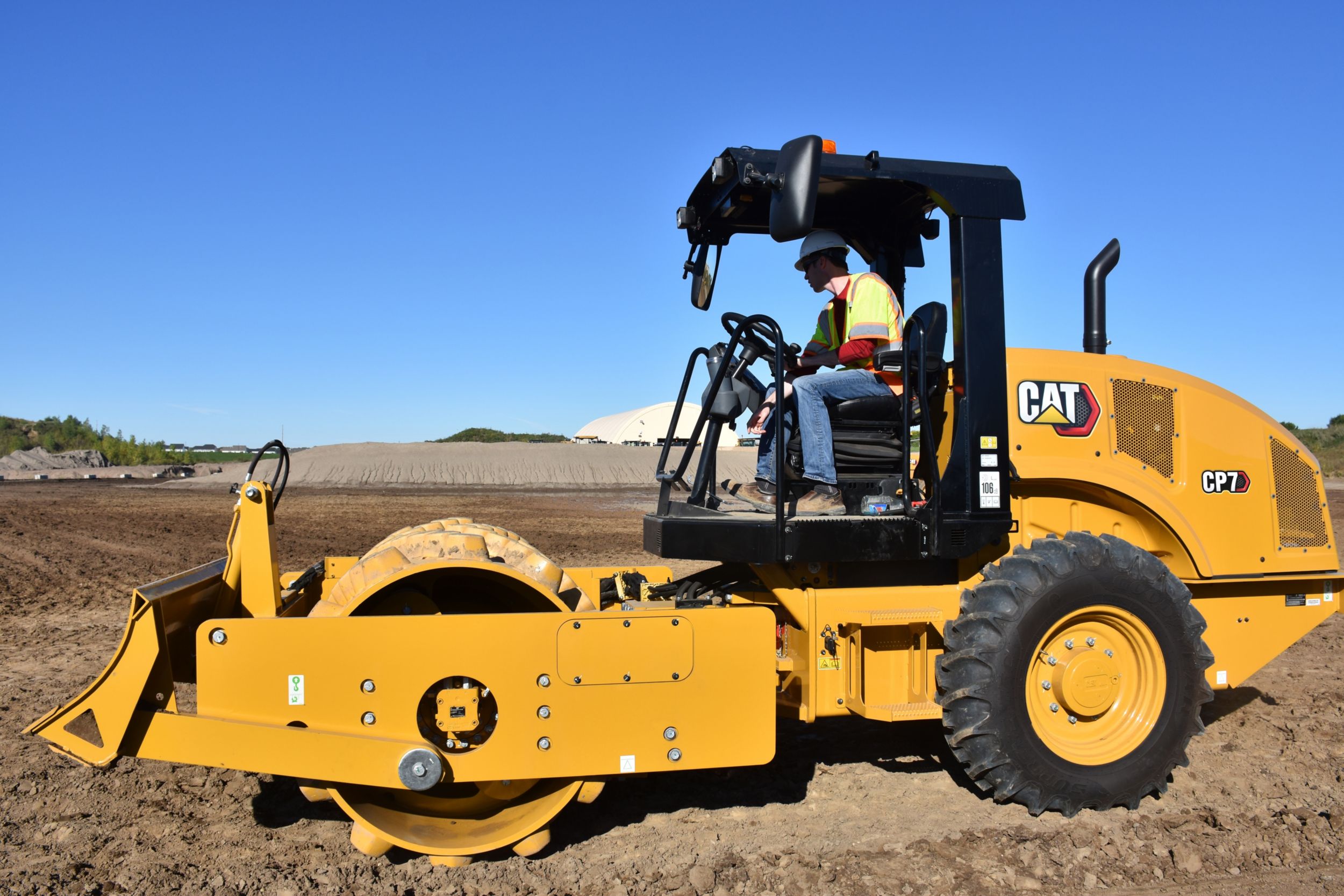

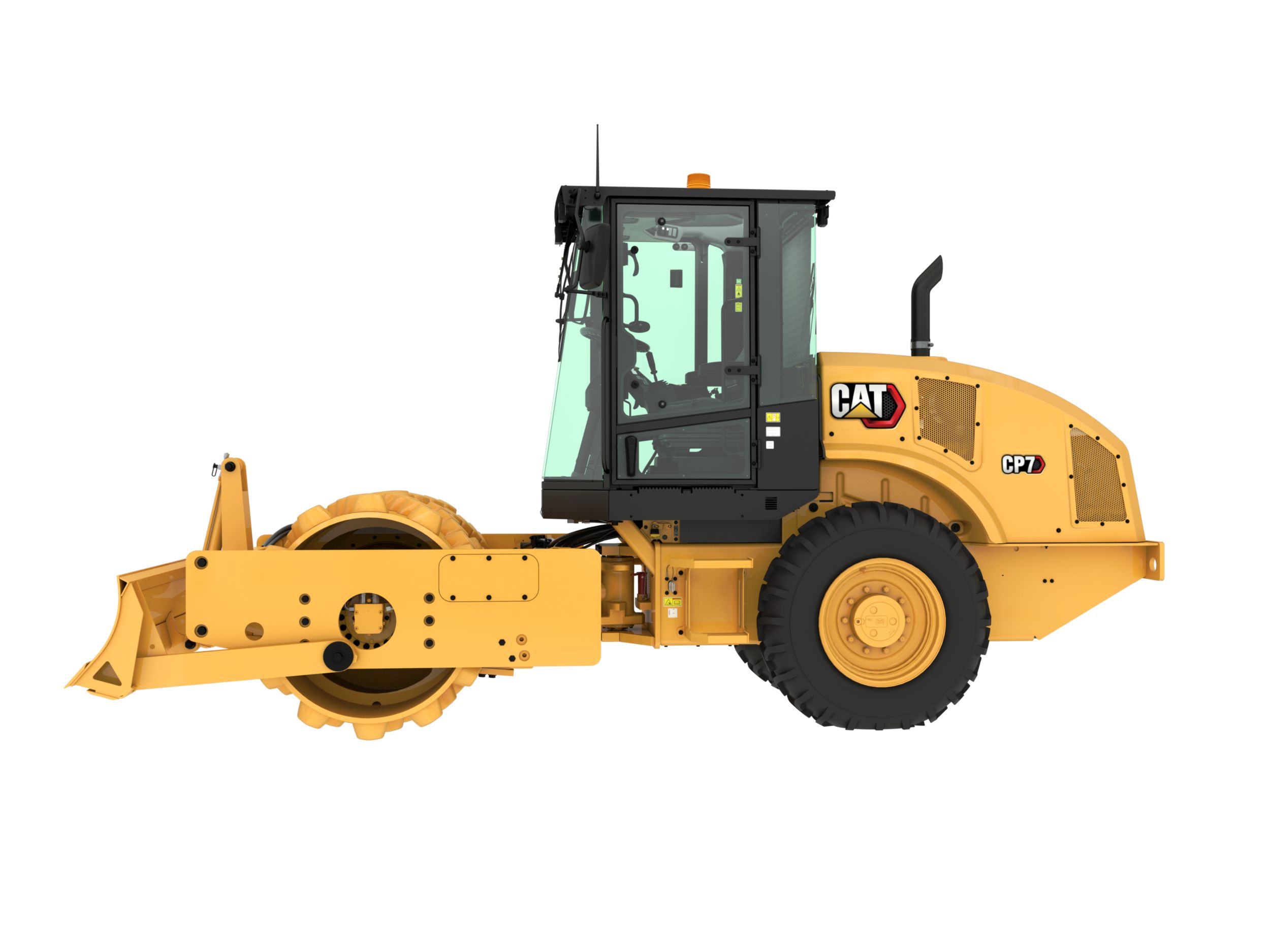

The CP7 Vibratory Soil Compactor is suitable for many applications from site preparation to compacting sub-bases for parking lots or roadways and is ideal for water and sewer trench work.
Operating Weight - With Cab 16990 lb
Compaction Width 66 in
Gross Power 99.8 HP
Weight - Drum with ROPS/FOPS Canopy 8139 lb
Operating Weight - With Cab 16990lb
Operating Weight - With ROPS/FOPS Canopy 16541lb
Weight - Drum with Cab 8293lb
Weight - Drum with ROPS/FOPS Canopy 8139lb
Compaction Width 66in
Curb Clearance 14.6in
Drum Width 66in
Ground Clearance 15.2in
Travel Speed - Maximum 6.8mile/h
Turning Radius - Inside Drum Edge 10ft
Bore 3.9in
Engine Model C3.6
Gross Power 99.8HP
Net Power - ISO 9249 92.7HP
Net Power - SAE J1349 91.7HP
Stroke 4.72in
Drum Diameter - Over Pads 48.1in
Drum Width 66in
Maximum Height 9.3ft
Overall Length 16.7ft
Overall Length - With Blade Option 18.4ft
Overall Width 5.9ft
Overall Width - With Blade Option 7ft
Wheel Base 8.5ft
Centrifugal Force - Maximum 29990lb
Centrifugal Force - Minimum 15056lb
Nominal Amplitude - High 0.061in
Nominal Amplitude - Low 0.031in
Variable Frequency Option Range 23.3-31.9 Hz (1400-1915 vpm)
Vibratory Frequency - Standard 1915V/m
Fuel Tank Capacity 37gal (US)
ROPS/FOPS Canopy with Handrails, Floor Mat, Internal Rear View Mirror, Exterior Rear View Mirrors
Vinyl Adjustable Seat with Integrated Console and LCD Display with Lockable Vandalism Guard
Adjustable Tilting Steering Column with Integrated Cup Holders
Rear Vision Camera System
Seat Belt
12-volt Power Outlet
Horn, Backup Alarm
Padfoot Drum
Dual Amplitude, Single Frequency
Pod-Style Eccentric Weight Housings
Auto-vibe Function
Front Adjustable Steel Scraper
Universal Bumper
Cat C3.4B Engine
Air Cleaner, Dual Element
Two-Speed Throttle Switch, Eco-mode and Automatic Speed Control
Dual Propel Pumps; One for Drum Drive, One for Rear Axle
Fuel Filter, Water Separator, Priming Pump, Water Indicator
Tilting Radiator/Hydraulic Oil Cooler
Dual Braking System
Two-speed Hydrostatic Transmission
12 volt Electrical System
150 ampere Alternator
60 Cold-cranking Amps Battery Capacity
Product LinkTM
Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
S-O-SSM Sampling Valves: Engine Oil, Hydraulic Oil and Coolant
ROPS/FOPS Cab with Climate Control
Sun Visor
Leveling Blade
Variable Frequency
Dual Adjustable Steel Scrapers
Recording Module for Vibration Frequency
Transmission Guard
Bio-oil Factory Fill
Map - SBAS GNSS Mapping
Connect - Cloud and Machine Connectivity

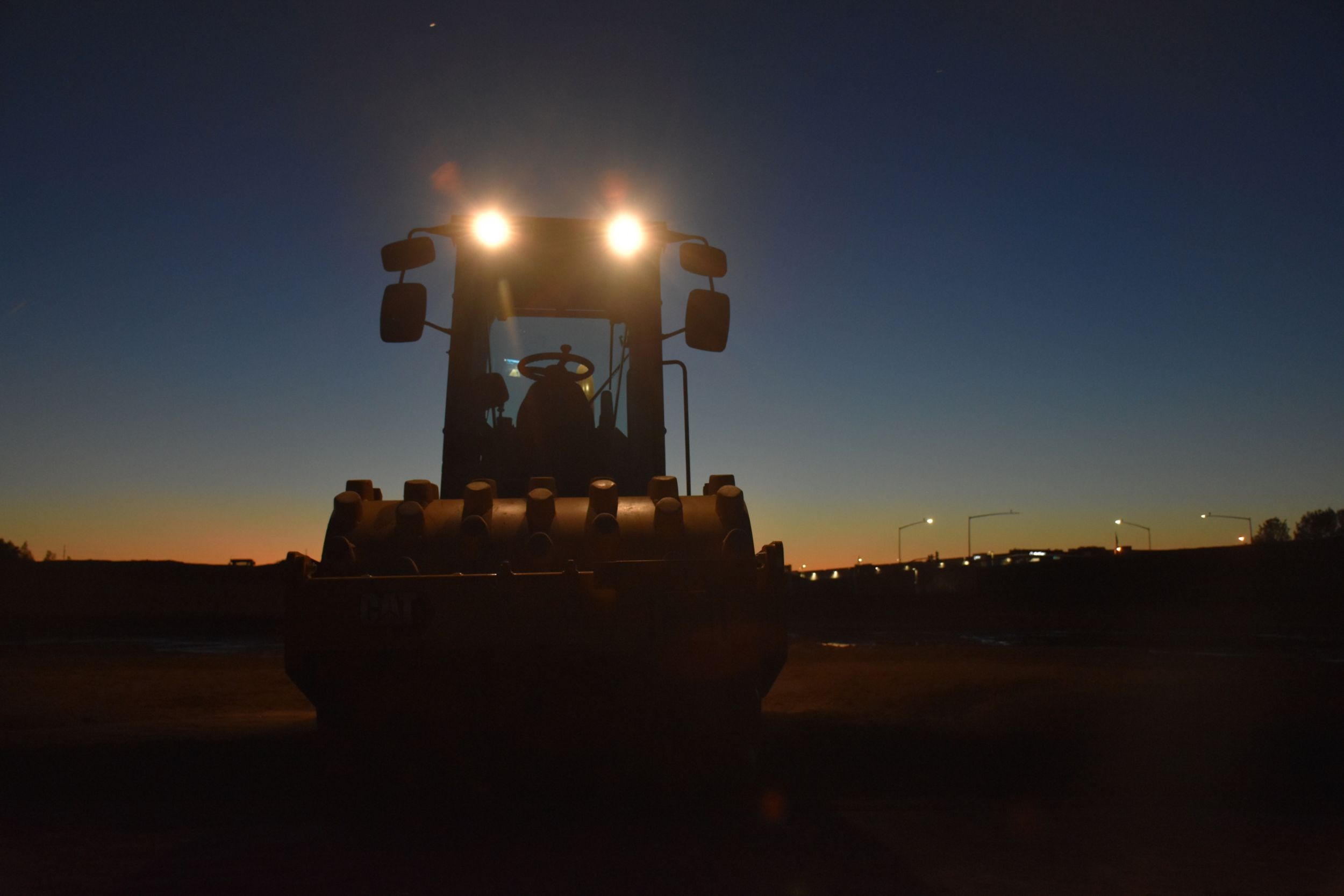

Upgraded Halogen Light Package
Rotating Amber Beacon
