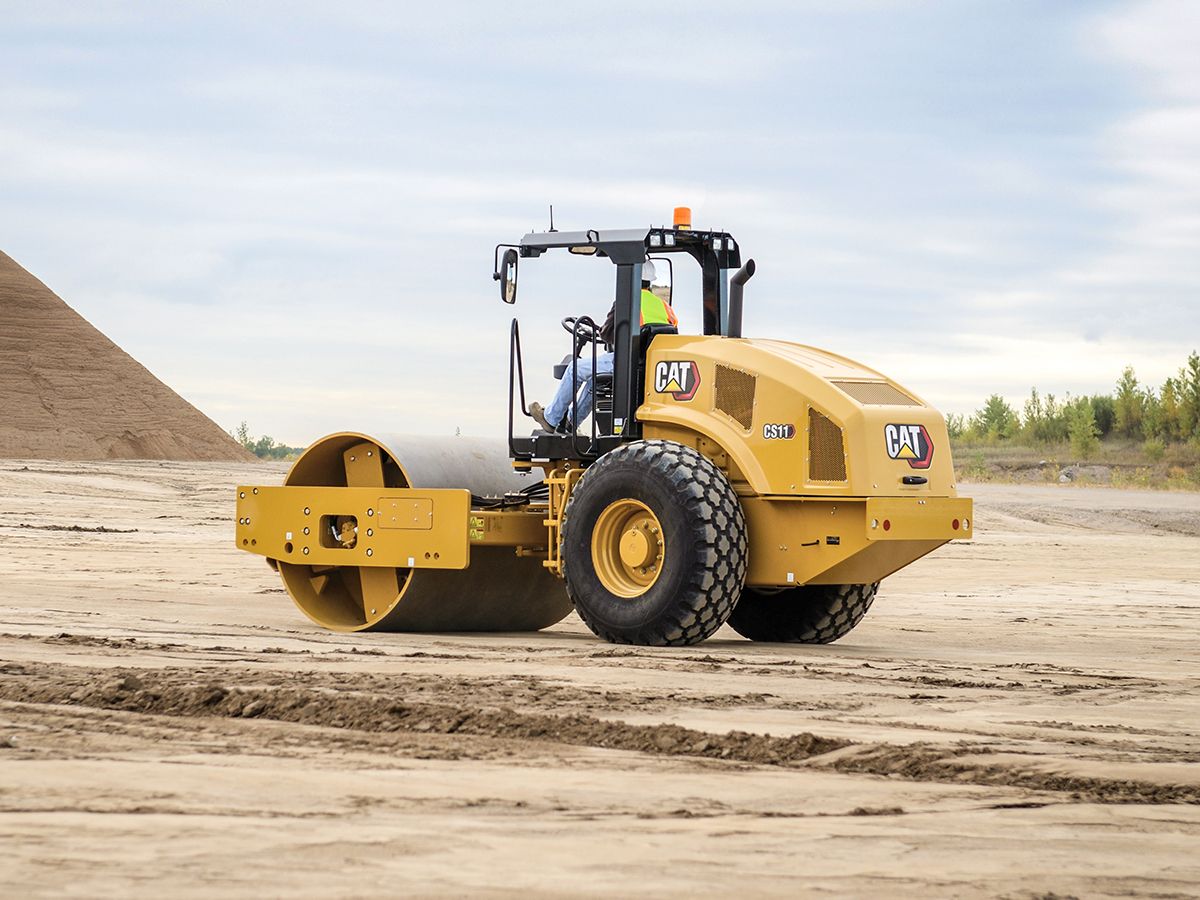

The Cat® CS11 Vibratory Soil Compactor features a smooth drum and is ideally suited for granular soil applications or cohesive soil applications with the use of an optional padfoot shell kit. A reliable propel system improves performance and efficiency and compaction technology solutions help you reach target density faster.
Operating Weight - With Cab 23823 lb
Compaction Width 84 in
Gross Power 132.8 hp
Engine Power - ISO 14396 131.3 hp
Note (1) Operating weights are approximate and consider full fluids and 80 kg (176 lb) operator. Cab weights include heat and air conditioning.
Operating Weight - With Cab 23823lb
Operating Weight - With ROPS/FOPS Canopy 23380lb
Weight - Drum with Cab 12963lb
Weight - Drum with ROPS/FOPS Canopy 12758lb
Compaction Width 84in
Drum Diameter 60.4in
Maximum Height 10.2ft
Overall Length 19.2ft
Overall Width 7.5ft
Wheel Base 9.5ft
Bore 4.1in
Emissions U.S. EPA Tier 4 Final
Engine Model Cat® C4.4
Engine Power - ISO 14396 131.3hp
Gross Power 132.8hp
Net Power - ISO 9249 109.8hp
Net Power - SAE J1349:2011 108.4hp
Note (1) Net power advertised is the power available at the engine flywheel when equipped with a fan at maximum speed, air cleaner, clean emissions module, and alternator.
Stroke 5in
Centrifugal Force - Maximum 54765lb
Centrifugal Force - Minimum 27491lb
Nominal Amplitude - High 0.075in
Nominal Amplitude - Low 0.038in
Static Linear Load - With Cab 154.3lb/in
Static Linear Load - With ROPS/FOPS Canopy 151.8lb/in
Variable Frequency Option Range 23.3 - 30.5 Hz (1400-1830 vpm)
Vibratory Frequency - Standard 1830VPM
Curb Clearance 21.4in
Ground Clearance 17in
Travel Speed - Maximum 6.7mile/h
Turning Radius - Inside Drum Edge 12.1ft
Axle and Final Drives 4.8gal (US)
Cooling System 8.3gal (US)
DEF Tank 5gal (US)
Eccentric Weight Housings (combined) 6.9gal (US)
Engine Oil - With Filter 2.3gal (US)
Fuel Tank Capacity 69.7gal (US)
Hydraulic Tank 13.2gal (US)
Recyclability 96%
Standard and optional equipment may vary. Consult your Cat dealer for details.
ROPS/FOPS Canopy with Handrails, Floor Mat, Vinyl Seat
Adjustable Seat with Integrated Console
LCD Display with Lockable Vandalism Guard
Adjustable Tilting Steering Column with Integrated Cup Holders
Rear Vision Camera System with Color Touchscreen Display
High Visibility 50 mm (2 in) Seat Belt
12-volt Power Outlet
Horn, Backup Alarm
Smooth Drum
Pod-Style Eccentric Weight Housings
Dual Amplitude, Single Frequency
Auto-vibe Function
Single Adjustable Steel Scraper
VisionLink®
Cat® C4.4 Engine
Air Cleaner, Dual Element
Three Speed Throttle Switch including Eco-mode
Automatic Speed Control (ASC)
Dual Propel Pumps; One for Drum Drive, One for Rear Axle
Fuel Filter, Water Separator, Priming Pump, Water Indicator
Tilting Radiator / Hydraulic Oil Cooler
Dual Braking System
Two-Speed Hydrostatic Transmission
Limited Slip Differential
24 volt Electrical System
100 ampere Alternator
750 Cold-cranking Amps Battery Capacity
Lockable Engine Enclosure, Hydraulic and Fuel Tanks
Sight Gauges for Hydraulic Oil Level and Radiator Coolant Level
S·O·S℠ Sampling Values: Engine Oil, Hydraulic Oil, and Coolant
Halogen Working Lights (4)
Standard and optional equipment may vary. Consult your Cat dealer for details.
ROPS/FOPS Cab with Climate Control, Cloth Seat, Exterior Rear View Mirrors
Sun Visor (Cab)
Roll-Down Screen (Cab)
High Visibility 76 mm (3 in) Seat Belt
Removable Shell Kit - Oval or Square Pads
Variable Frequency
Dual Adjustable Steel Scrapers
Dual Adjustable Polyurethane Scrapers
Measure - Machine Drive Power (MDP)
Measure - Compaction Meter Value (CMV)
Transmission Guard
Factory Filled Bio-Hydraulic Oil
Halogen Working Lights (8)
Amber Rotating Beacon
