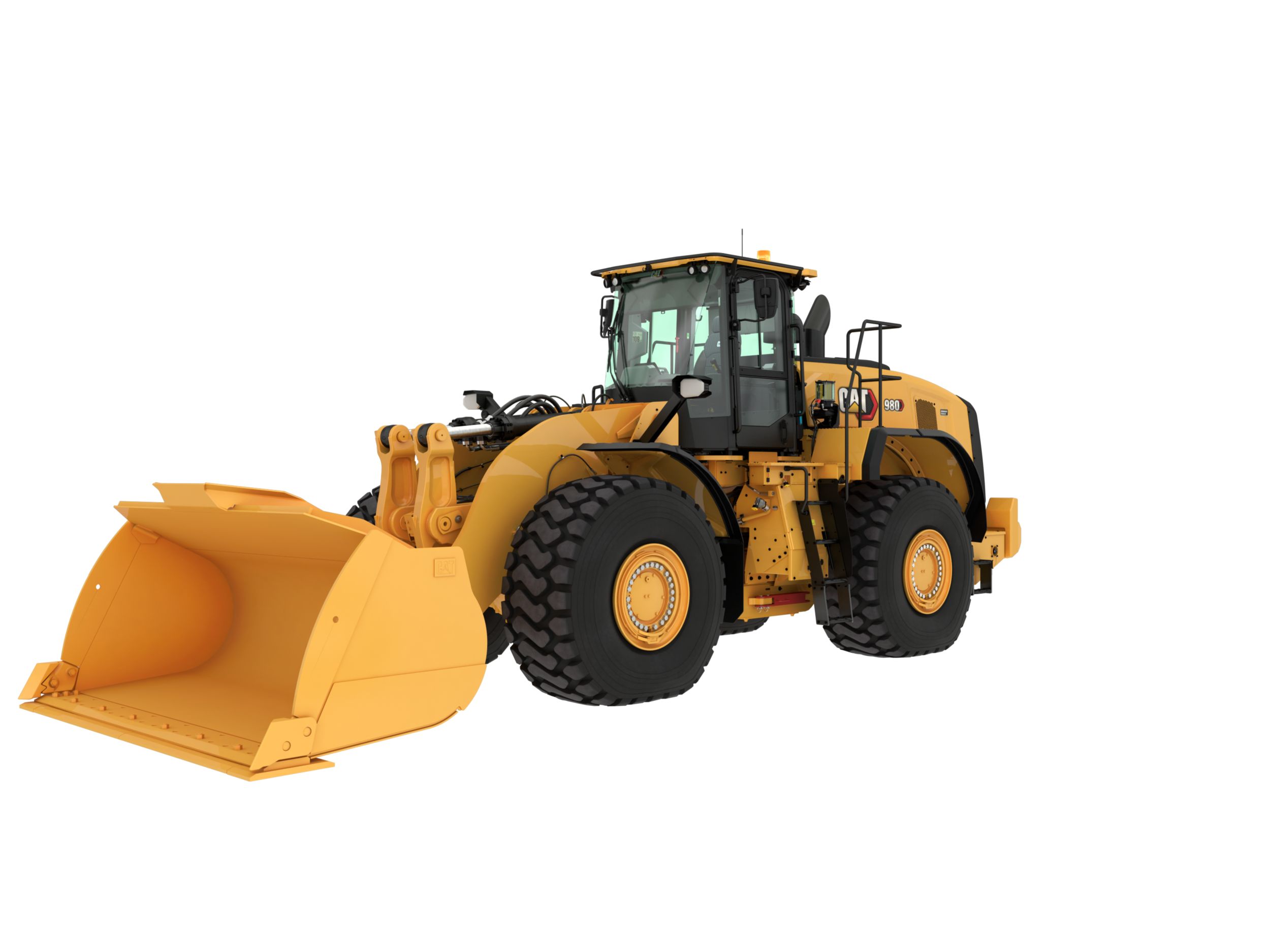

The Cat® 980 Wheel Loader is built to dominate demanding jobs with strength, smarts, and staying power. Its advanced systems help operators load faster with precision, while its durable design and extended service intervals keep it running shift after shift. Whether you're moving heavy rock, working in the pit, or powering through tough terrain, the 980 is ready to deliver—every time.
Engine Power - 1,700 rpm ISO 14396:2002 420 hp
Operating Weight 66877 lb
Engine Power - 1,700 rpm ISO 14396:2002 426 hp (metric)
Engine Model Cat® C13
Biodiesel Capability Up to B20¹
Displacement 763in³
Displacement 12.5 L
Emissions Meets U.S. EPA Tier 4 Final, EU Stage V, Korea Stage V, China Nonroad Stage IV and Japan 2014 emission standards.
Engine Model Cat® C13
Engine Power - 1,700 rpm ISO 14396:2002 420hp
Engine Power - 1,700 rpm ISO 14396:2002 426 hp (metric)
Engine Power @ 1,700 rpm – ISO 14396:2002 429hp
Engine Torque - 1,200 rpm ISO 14396:2002 1612lbf·ft
Engine Torque @ 1,200 rpm – ISO 14396:2002 1612lb/ft
Gross Power - 1,700 rpm SAE J1995:2014 425hp
Gross Power - 1,700 rpm SAE J1995:2014 431 hp (metric)
Gross Power @ 1,700 rpm – SAE J1995:2014 425hp
Gross Torque - 1,200 rpm SAE J1995:2014 1627lbf·ft
Gross Torque @ 1,200 rpm – SAE J1995:2014 1627lb/ft
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011 393hp
Net Power - 1,700 rpm ISO 9249:2007, SAE J1349:2011 398 hp (metric)
Net Torque - 1,100 rpm ISO 9249:2007, SAE J1349:2011 1539lbf·ft
Net Torque @ 1,100 rpm – ISO 9249:2007, SAE J1349:2011 1539lb/ft
Note (1) The net power advertised is the power available at the flywheel when the engine is equipped with fan, alternator, air cleaner, and aftertreatment.
Note (2) ¹Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) and are compatible* with ULSD blended with the following lower-carbon intensity fuels**up to: 20% biodiesel FAME (fatty acid methyl ester) ***100%
Note (3) Cat diesel engines are required to use ULSD (ultra-low sulfur diesel fuel with 15 ppm of sulfur or less) or ULSD blended with the following lower-carbon intensity fuels up to: • 20% biodiesel FAME (fatty acid methyl ester)* • 100% renewable diesel, HVO (h
Note Weight based on a machine configuration with Bridgestone 29.5R25 VSNT L4 radial tires, full fluids, operator, standard counterweight, ride control, cold start, roading fenders, Product Link™, open differential axles (front/rear), secondary steering, sound
Operating Weight 66877lb
Forward - 1 4.3mile/h
Forward - 2 8.3mile/h
Forward - 3 14.6mile/h
Forward - 4 24.5mile/h
Note Maximum travel speed in standard vehicle with empty bucket and standard L4 tires with 935 mm (37 in) roll radius.
Reverse - 1 4.8mile/h
Reverse - 2 9.4mile/h
Reverse - 3 16.7mile/h
Reverse - 4 24.5mile/h
Exterior Sound Power Level - ISO 6395:2008 112dB(A)
Exterior Sound Power Level - ISO 6395:2008² 109dB(A)
Note (1) ¹Including countries that adopt the EU and UK Directives.
Note (2) ²Exterior Sound Power Level - European Union Directive 2000/14/EC and UK Noise Regulation 2001 No. 1701.
Operator Sound Pressure Level - ISO 6396:2008 72dB(A)
Operator Sound Pressure Level - ISO 6396:2008 ¹ 72dB(A)
Air Conditioning The air conditioning system on this machine contains the fluorinated greenhouse gas refrigerant R134a or R1234yf. See the label or instruction manual for identification of the gas. - If equipped with R134a (Global Warming Potential = 1430), the system
Breakout Force 51008lbf
Note (1) For a machine configuration as defined under “Weight.”
Note (2) Full compliance to ISO 14397-1:2007 Sections 1 thru 6, which requires 2% verification between calculations and testing.
Static Tipping Load - Full 40° Turn - No Tire Deflection 46208lb
Static Tipping Load - Full 40° Turn - With Tire Deflection 43432lb
Cooling System 13.7gal (US)
Crankcase 9.8gal (US)
DEF Tank 5.5gal (US)
Differential - Final Drives - Front 22.2gal (US)
Differential - Final Drives - Rear 22.2gal (US)
Fuel Tank 112.5gal (US)
Hydraulic Tank 40.4gal (US)
Transmission 20.3gal (US)
Hydraulic Cycle Time - Total 10.1s
Implement System - Maximum Operating Pressure 4975psi
Implement System - Maximum Pump Output at 2,250 rpm 119gpm
Ground Clearance 1.42ft
Height - Top of Hood 10.08ft
Height - Top of ROPS 12.58ft
Hinge Pin Height at Carry Height 2ft
Hinge Pin Height at Maximum Lift 14.92ft
Lift Arm Clearance at Maximum Lift 12.67ft
Note All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.
Overall Length - Without Bucket 26.83ft
Rack Back - Carry Height 48°
Rack Back - Carry Height 50 degrees
Rack Back - Maximum Lift 61°
Rack Back - Maximum Lift 61 degrees
Rack Back at Ground 40 degrees
Tread Width 8ft
Wheel Base 12.5ft
Width over Tires (Loaded) 10.75ft
Ground Clearance 1.42ft
Height - Top of Hood 10.08ft
Height - Top of ROPS 12.58ft
Hinge Pin Height at Carry Height 2.17ft
Hinge Pin Height at Maximum Lift 15.58ft
Lift Arm Clearance at Maximum Lift 13.5ft
Note All dimensions are approximate and based on machine equipped with 5.4 m³ (7.1 yd³) general purpose bucket with BOCE and Bridgestone 29.5R25 VSNT L4 radial tires.
Overall Length - Without Bucket 27.42ft
Rack Back - Carry Height 50°
Rack Back - Carry Height 50 degrees
Rack Back - Maximum Lift 61°
Rack Back - Maximum Lift 61 degrees
Rack Back at Ground 40 degrees
Tread Width 8ft
Wheel Base 12.5ft
Width over Tires (Loaded) 10.75ft
Standard and optional equipment may vary. Consult your Cat dealer for details.
Cab, pressurized, sound suppression
Door, remote opening system
EH implement controls, parking brake
Steering, joystick
Seat, cloth, air suspension
Touchscreen display
Keypad, programmable buttons
Air conditioner, heater, defroster (auto temp, fan)
Sun visor, front and rear retractable
Windows, front, safety laminated rounded glass
Cat® C13 engine
Electric fuel priming pump
Fuel-water separator and secondary fuel filter
Engine, air precleaner
Axles, open differentials
Transmission, planetary, automatic powershift
Torque converter with lock-up
Service brakes, hydraulic, fully enclosed wet disc, wear indicators
Integrated Braking System (IBS)
Park brake, caliper on front axles, spring applied-pressure released
Brake pedal neutralizer with decel function
Starting and charging system, 24V
Starter, electric, heavy duty
Lights: halogen, 4 work lights, 2 front roading lights with turn signals, 2 rearview lights
Implement system, load sensing with variable displacement piston pump
Steering system, load sensing with dedicated variable displacement piston pump
Ride control, dual accumulators
Oil sampling valves, Cat XT hoses
Standard lift, Z-bar
Kickouts: lift and tilt
Front dash with analog gauges, LCD display, and warning lights
Primary touchscreen monitor (Cat Payload, quad screens, machine settings and messages)
Maintenance reminders
Autodig with auto set tires
Operator ID and machine security
Application profiles
Job aids
Controls help and eOMM (Not available in all languages)
Cat Payload
Key Features Inform
Bucket Carry Display Widget
Remote Flash
Seat belt reminder
2-point seat belt
Rear vision camera
Window cleaning platform, front
Standard and optional equipment may vary. Consult your Cat dealer for details.
Footrest
HMU steering wheel
Implement joystick (2V, 3V only)
Entertainment radio (FM, AM, USB, BT)
Entertainment radio (DAB+)
CB radio ready
Seat, suede/cloth, air suspension, heated
Seat, leather/cloth, air suspension, heated/cooled
Mirrors, heated
Windows, front, heavy duty
Full cab window guard
Turbine, air precleaner
Radiator, high debris
Cooling fan, reversible
Axles, limited slip differential(s)
Axles, ecology drains, AOC ready, extreme temperature seals
Axles, oil cooler
Heafy-duty transmission
Cold start, 120V or 240V
Lights: LED
3rd and 4th auxiliary functions with ride control
Quick coupler control
High lift, Z-bar
Tire pressure monitor
Cat Advanced Payload
Cat Payload for Trade (Available in Europe and Australia. Country certifications vary. Contact your Cat dealer for more information.)
Cat Payload Printer with E-ticket
4-point seat belt (kit)
Rear vision camera, dedicated
Surround vision, dedicated
Window cleaning platform, front
Collision warning system
Collision mitigation system
Reverse strobe lights (Not compatible with roading arrangements)
Warning beacon
Secondary steering system, electrical (Standard where mandated)
Wheel chocks
Remote control
Cat Autolube system
Fenders, extensions or roading
Guards: powertrain, crankcase, cab, cylinders, rear
Biodegradable hydraulic oil
High-speed oil change system
Rear cab access
Single Life Cutting Edge GET
Toolbox
Aggregate handler
Waste and industrial
Forestry
Steel mill
Block handler
