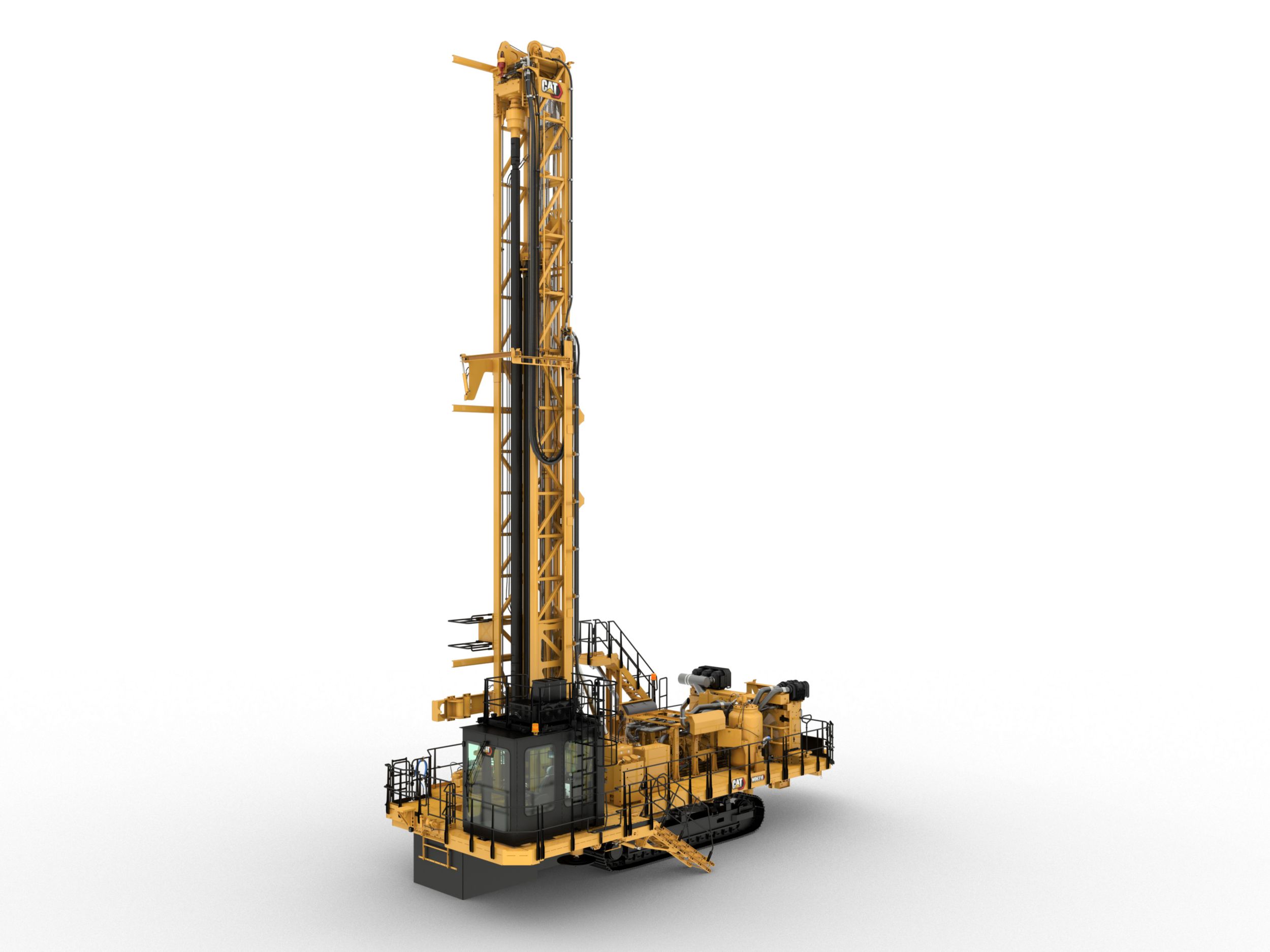

MD6310 Rotary Blasthole Drill 13.7 m or 17.5 m (44.9 ft or 57.4 ft) Mast Configuration

MD6310 Rotary Blasthole Drill 13.7 m or 17.5 m (44.9 ft or 57.4 ft) Mast Configuration

  • Pull-Down Capacity Up to 39 009 kg (86,000 lb)

  • Hole Diameter 229-311 mm (9-12.25 in)

  • Engine Cat® C32B

  • Bit Load Up to 42 149 kg (Up to 92,922 lb)

Request a quote

Product Specifications

Specifications

Pull-Down/Hoisting Capacity

  • Pull-Down Capacity Up to 39 009 kg (86,000 lb)

Specifications

  • Bit Load Up to 42 149 kg (Up to 92,922 lb)

  • Engine Cat® C32B

  • Hole Diameter 229-311 mm (9-12.25 in)

Engine Choices

  • Components (1) Dual starter motors

  • Components (2) Scheduled oil sampling (S∙O∙SSM) ports

  • Components (3) Common air intake filters provide +500 hour service interval in normal operating conditions

  • Components (4) Ether starting aid; ether bottle supplied locally

Operating System Controls - Standard

  • Components (1) All electric controls for drilling, tramming, leveling plus auxiliary functions

  • Components (10) Filter indicators for hydraulic, compressor and engine

  • Components (11) Jack pressure sensors in the display

  • Components (12) Dust suppression control

  • Components (13) Mast lock indicator

  • Components (14) ECM controlled proportional fan speed control system

  • Components (15) Tram interlock, machine stability limits

  • Components (16) Tram interlock, pipe in hole

  • Components (17) Tram interlock, mast up and locked or down and parked

  • Components (18) Tram interlock, jacks retracted

  • Components (19) Cab environment controls (AC, filter, heat, fan speeds)

  • Components (2) Electronic compressor control

  • Components (20) Cabin pressure manometer with indicator (option)

  • Components (21) Dust curtain lifting system – auto hydraulic raise front and rear (option)

  • Components (22) Prewired for Terrain and autonomous operation

  • Components (23) Data logging of machine health with warnings, and fault code records; export capability

  • Components (3) Rotation torque control

  • Components (4) Virtual rotary head travel stops and interlocks

  • Components (5) Pipe positioner engaged/disengaged indicator

  • Components (6) Drill depth meter

  • Components (7) Drill performance and display system

  • Components (8) Delayed engine shut down

  • Components (9) Rotary head rpm gauge – (digital display in screen)

Carousel (Mast size and pipe diameter dependent)

  • 13.7 m (44.9 ft) Mast Carousel; holds quantity of 4 × 12.19 m (40 ft) pipes; total depth 62.5 m (204.9 ft): Pipe diameters 178 mm (7 in), 194 mm (7.625 in), 203 mm (8 in), 219 mm (8.625 in)

  • 13.7 m (44.9 ft) Mast Carousel; holds quantity of 5 × 12.19 m (40 ft) pipes; total depth 74.6 m (244.9 ft): Pipe diameters 194 mm (7.625 in), 219 mm (8.625 in)

  • 17.5 m (57.4 ft) Mast Carousel; holds quantity of 2 × 7.62 m (25 ft) pipes; total depth 32.7 m (107.4 ft): Pipe diameter 9.25in

  • 17.5 m (57.4 ft) Mast Carousel; holds quantity of 4 × 7.62 m (25 ft) pipes; total depth 48 m (157.5 ft): Pipe diameters 178 mm (7 in), 194 mm (7.625 in), 203 mm (8 in), 219 mm (8.625 in)

  • Note 13.7 m (44.9 ft) Mast Carousel, dual purpose; holds quantity of two (2) 12.19 m (40 ft) pipes and quantity of two (2) 9.14 m (30 ft) pipes, and adapters to connect to DTH hammer and tricone bit (DTH hammer and tricone not included)

    • Accepts 194 mm (

Automation and Technology

  • Components (1) Drill depth indicator and interlocks

  • Components (2) Auto level, auto retract, auto mast

  • Components (3) Drill assist (single or multipass auto drill) (options)

  • Components (4) Product Link Elite (hardware from factory, subscription package via dealer)

  • Components (5) Optional Command for Drilling enables each operator to manage more than one machine

  • Components (6) Wiring for third party interface

  • Optional Cat Terrain for Drills - Mining System Interface – Production
    – Navigation

  • Type Autonomy ready

Safety and Security

  • Components (1) Alloy drill deck covers, with storage provision

  • Components (10) In-deck mounted battery box

  • Components (11) Ground level keyed battery disconnect/starter lockout with remote jump start terminals

  • Components (12) Air hose retention devices

  • Components (2) Seven (7) engine shut down buttons: in cab, at drill deck, on deck at power train, ground accessible by main access point and each side of the drill front and left

  • Components (3) Electric horn activated by push button in the cab

  • Components (4) Tram alarm is automatic and audible

  • Components (5) Hinged protective guard for full front drill window

  • Components (6) Guards for exhaust pipes and turbo lines

  • Components (7) Mast access ladder with mast grating (option)

  • Components (8) Three egress points on deck areas in addition to main access

  • Components (9) Self-closing, gates secure egress ladder locations

  • Feature Approach angle of 14 degrees facilitates loading and unloading on a lowboy

Frame and Work Deck

  • Components (1) Stationary rear deck; for vertical and angle drilling

  • Components (10) Drill pipe thread greaser with remote fill tank or disposable grease bucket (option)

  • Components (2) Four leveling jacks to provide leveling on a 7° bench (any orientation)

  • Components (3) Manual, centralized, lubrication banks for all pivot points on drill, or automated lubrication system (option)

  • Components (4) Heavy duty tow hooks (front end)

  • Components (5) Four (4) lift lugs, for use with cables or chains

  • Components (6) Walkway around cab to drill deck (option)

  • Components (7) Bit storage box in-deck with hinged cover (option)

  • Components (8) DTH hammer storage on drill deck with high pressure configuration (option)

  • Components (9) Hydraulically operated viewing hatch in drill deck with spotlight (option)

  • Features (1) Jacks, mast pivot and deck are welded integrally to mainframe for maximum durability and long life

  • Features (2) Slip resistant surface

  • Features (3) Fuel tank capacity 1609 L (425 gal)

  • Features (4) Fuel capacity expansion for additional +1609 L (425 gal)

  • Features (5) Bolt-on platform for cold weather generator or fire suppression bottles (option)

  • Features (6) Three egress points on deck areas in addition to main access

  • Features (7) Sturdy guardrails, toe guards, self closing gates

Operator Environment

  • Cab - Premium – Leather seat with heat and ventilation
    – Dual pane window glass
    – Front window guard
    – Additional in-cab storage box
    – Additional windshield wipers on front and rear windows
    – Window shades (option)
    – Foldaway trainer’s seat (option)

  • Cab - Standard – Fabric seat
    – Single pane window glass
    – Windshield wiper for driller window
    – Window shades (option)
    – Foldaway trainer’s seat (option)
    – Removable floor mat

  • Cameras – Mounted on the front and left sides to provide 360° view from operator's seat
    – Camera on the mast to view pipe carousel/top drive operation

  • Components (1) Spacious FOPS cab has 3 m² (32.4 ft²) floor space with an integrated operator station

  • Components (10) Radio-ready for communication and entertainment radio

  • Components (11) Cab roof access ladder (option)

  • Components (12) Literature holder

  • Components (13) Seat swivels, locks and has two point/76 mm (3 in) seat belt, tilts (5° adjustment), lumbar support, fore/aft seat adjustment 80 mm (3.1 in)

  • Components (14) Trainer’s seat that folds away and has retractable seat belt (optional)

  • Components (2) Extended cab option 4.2 m² (45.2 ft²); prewired and dedicated space for refrigerator and microwave

  • Components (3) Cab perimeter walkway available for both cab sizes

  • Components (4) Drill performance touchscreen display

  • Components (5) Cab rubber shock-mounts absorb mechanical vibration and restrict exterior noise

  • Components (6) Two swing-out hinged doors with windows and Cat keyed locks

  • Components (7) Operator station design integrates an ergonomic seat, armchair joystick controls with full instrumentation, and two 254 mm (10 in) color, high definition touchscreens and 12 volt power port

  • Components (8) Additional display screen for cc cameras; color, high-definition 254 mm (10 in)

  • Components (9) Power convertor 24V to 12V

  • HVAC – Floor vents in the foot rest area
    – Roof-mounted air conditioner/heating/pressurizing unit
    – Filter access from deck, does not require roof access, and has approximately 500 hour service interval
    – Defogging HVAC vents on driller window

  • Lighting – LED interior lights; separate reading light, and backlit joysticks and keypads
    – Zone controls for area lights and spot lighting for night drilling
    – Flood lights for the drill perimeter
    – Spot lights for power group area; drill deck; mast caro

Hydraulic Break Out Wrench

  • Variable Grip Hydraulic Break Out Wrench Grip Ranges (1) 178-219 mm (7.0-8.625 in)

  • Variable Grip Hydraulic Break Out Wrench Grip Ranges (2) 235 mm (9.25 in)

Hydraulics

  • Components (1) Two (2) primary pumps – 210 cc (piston, with proportional electronic controls)

  • Components (2) One (1) auxiliary circuit pump – 110 cc (piston, load sensing)

  • Components (3) Two (2) fan pumps – 1,000 cc (piston, with proportional electronic controls)

  • Components (4) Two (2) charge pumps – 43.9 + 56.5 cc (double stack gear, fixed displacement)

  • Components (5) Scheduled Oil Sampling (S∙O∙S) ports

Tool Package DTH

  • Components (1) Two piece bushing

  • Components (2) Pipe positioner inserts

  • Components (3) Deck wrench, sliding

  • Components (4) Shock sub and top sub adapter

  • Components (5) Cross over hammer adapter

  • Components (6) Pipe wiper seal

Compressor/Receiver Choices

  • Choice Electronic compressor control and regulation with purged air lines

  • DTH Drilling - Includes Tool Lubrication and Hammer Storage 42.2 m³/min (1,500 ft³/min) @ 34.4 bar (500 psi)

  • Note With the compressors variable volume control, the operator can limit air output resulting in reduced fuel consumption
    – Both high and low pressure compressors contain this feature

  • Receiver Tank Choice (1) Low pressure 8.6 bar (125 psi) for ASME/CR N/AU or CE

  • Receiver Tank Choice (2) High pressure 34.4 bar (500 psi) for ASME/CR N/AU or CE

  • Rotary Drilling (1) 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi)

  • Rotary Drilling (2) 73.6 m³/min (2,600 ft³/min) @ 7.6 bar (110 psi)

Mast

  • Features (1) 13.7 m (44.9 ft) or 17.5 m (57.4 ft) Mast configurations complete with pipe rack carousel

  • Features (10) Overhead winch with remote; variable speed drive with ≥ 1818 kg (4,000 lb) rating, length to reach 6.1 m (20 ft) past drill deck (option)

  • Features (11) Rotation Gear Box with dual motor arrangement, up to 160 rpm, and 16,000 N∙m of torque (11,800 ft-lb)

  • Features (12) Pipe catcher; manual or optional hydraulically actuated

  • Features (13) Tool oiler 113.5 L (30 gal) oil injection system (Rotary drilling only)

  • Features (14) Mast lanyard mounting provisions (option)

  • Features (15) Mast access ladder and grating (option)

  • Features (2) Pulldown/hoist system is a single cylinder

  • Features (3) Auto tensioning of pull down and hoist cables

  • Features (4) Feed system accommodates multiple pipe diameters

  • Features (5) Variable grip hydraulic break out wrench (HOBO) for range of pipe diameters

  • Features (6) Sliding deck wrench assembly

  • Features (7) Configured with roller deck bushing for tricone applications, two-piece deck bushing for DTH

  • Features (8) Angle drilling 0-30°; in 5° increments

  • Features (9) Drill pipe positioner

  • Note (1) Hydraulic, indexing pipe carousels accept various pipe diameters

  • Note (2) Configuration choices include single pass, multi pass, vertical out to 30 degree angle drilling

Mast Packages

  • Angle Drilling Included with either mast

  • Mast Accessories Hydraulic (1) One hydraulic pipe catcher, hydraulically actuated pipe positioner, hydraulic bit basket

  • Mast Accessories Hydraulic (2) One hydraulic pipe catcher, plus one wire rope, hydraulically actuated pipe positioner, hydraulic bit basket

  • Mast Accessories Manual, 13.7 m (44.9 ft) Mast One wire rope pipe catcher, hydraulically actuated pipe positioner, manual bit basket

  • Mast Accessories Manual, 17.5 m (57.4 ft) Mast Two wire rope pipe catchers, hydraulically actuated pipe positioner, manual bit basket

Weights - 17.5 m (57.4 ft) Mast

  • Working Weight Range - Minimum/Maximum 75 500/97 500 kg (166,449/214,950 lb)

Basic Specs

  • 13.7 m (44.9 ft) Mast - Bit Load - Single Pass Up to 41 165 kg (Up to 90,753 lb)

  • 13.7 m (44.9 ft) Mast - Hoist Capacity Up to 22 113 kg (Up to 48,750 lb)

  • 13.7 m (44.9 ft) Mast - Hoist Speed 122.7ft/min

  • 13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in)

  • 13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Multi Pass Depth Down to 74.6 m (Down to 244.9 ft)

  • 13.7 m (44.9 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Single Pass Depth 44.9ft

  • 13.7 m (44.9 ft) Mast - Pulldown Capacity Up to 39 009 kg (Up to 86,000 lb)

  • 17.5 m (57.4 ft) Mast - Bit Load - Single Pass Up to 42 149 kg (Up to 92,922 lb)

  • 17.5 m (57.4 ft) Mast - Hoist Capacity Up to 22 113 kg (Up to 48,750 lb)

  • 17.5 m (57.4 ft) Mast - Hoist Speed 122.7ft/min

  • 17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in)

  • 17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Multi Pass Depth Down to 47.9 m (Down to 157.4 ft)

  • 17.5 m (57.4 ft) Mast - Hole Diameter Range 203-311 mm (8-12.25 in) - Single Pass Depth 57.4ft

  • 17.5 m (57.4 ft) Mast - Pulldown Capacity Up to 39 009 kg (Up to 86,000 lb)

  • Angle Drilling Vertical to 30° (in 5° increments)

  • Compressor - DTH Drilling 42.2 m³/min (1,500 ft³/min) @ 34.4 bar (500 psi)

  • Compressor - Rotary Drilling (1) 56.6 m³/min (2,000 ft³/min) @ 8.6 bar (125 psi)

  • Compressor - Rotary Drilling (2) 73.6 m³/min (2,600 ft³/min) @ 7.6 bar (110 psi)

  • Emissions (Equivalent to Tier 2): Engine C32B @ 1,800 rpm

  • Emissions (Equivalent to Tier 2): Power Rating ISO 14396 1031hp

  • Emissions (U.S. EPA Tier 4 Final): Engine C32B @ 1,800 rpm

  • Emissions (U.S. EPA Tier 4 Final): Power Rating ISO 14396 1007hp

Undercarriage

  • Carrier Rollers Three (3)

  • Drawbar Pull 122971lbf

  • Lower rollers Fourteen (14)

  • Model Cat® 349E EL Excavator type

  • Track chain guards and guides Level two

  • Travel Speed 1.5mile/h

  • Triple grousers for soft rock ground bearing pressure 1.28 bar (18.5 psi) 29.5in

Service Tool Options

  • Lifting Bails (Available on Request) – 114 mm (4.5 in) API reg thread
    – 140 mm (5.5 in) API reg thread
    – 168 mm (6.625 in) for top sub/shock sub API thread
    – 114 mm (4.5 in) for 178 mm (7 in) pipe BECO thread
    – 152 mm (6 in) for 194 mm (7.625 in) up to 235 mm (9.25 in) pipe BECO

  • Option Bushing Retention Tool 178 to 235 mm (7.00 to 9.25 in) pipe diameter

Drill Pipe

  • 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: DTH 7in

  • 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: Rotary (1) 8in

  • 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: Rotary (2) 8.625in

  • 12.19 m (40 ft) pipes - pipe rack carousel holds a quantity of four (4) or five (5) pipes, 13.7 m (44.9 ft) Mast: Rotary or DTH 7.625in

  • 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: DTH 7in

  • 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary 9.25in

  • 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary (1) 8in

  • 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary (2) 8.625in

  • 7.62 m (25 ft) pipes - pipe rack carousel holds a quantity of four or five pipes, 17.5 m (57.4 ft) Mast: Rotary or DTH 7.625in

  • Note Dual purpose carousel pipe: 13.7 m (44.9 ft) Mast; holds quantity of two (2) 12.19 m (40 ft) pipes and quantity of two (2) 9.14 m (30 ft) pipes, and adapters to connect to DTH hammer and tricone bit (DTH hammer and tricone not included)

    • Dual purpos

Climate Choices

  • Climate Level 1 Standard Fluids and Lubricants (1) Rated down to –1° C (30° F) temperatures

  • Climate Level 1 Standard Fluids and Lubricants (2) Withstands high heat to 52° C (125° F)

  • Climate Level 2 Arctic Fluids and Lubricants Rated down to –18° C (–0.4° F) temperatures

  • Climate Level 4 Arctic Fluids and Lubricants, Heating Package (1) Rated down to –40° C (–40° F) temperatures

  • Climate Level 4 Arctic Fluids and Lubricants, Heating Package (2) Diesel fired heating system that heats and circulates engine coolant through the: engine block, primary water tank, heating elements for battery trays with a provision for fuel tanks

  • Climate Level 4 Arctic Fluids and Lubricants, Heating Package (3) Full arctic lubricant package includes: engine oil, compressor oil and hydraulic oil

  • Climate Level 4 Arctic Fluids and Lubricants, Heating Package (4) Electric heating package with breaker panel to power: 120V heating blanket for compressor receiver tank, compressor control box, heat trace for compressor control lines, heat trace for housing from water tank to water pump and water fast-fill assembly plu

  • Climate Level 4 Arctic Fluids and Lubricants, Heating Package (5) Shore power connection box with switchable 240-600V (50 amp) connection; diesel genset and or plug, sold separately

  • Climate Level 4 Arctic Fluids and Lubricants, Heating Package (6) Breaker panel includes five (5) additional breakers for locally supplied heating elements, if needed

Dimensions (Approximate) - 17.5 m (57.4 ft) Mast

  • Body Length - Extended Cab 42.24ft

  • Body Length - Standard Cab 43.54ft

  • Height - Mast Up 77.99ft

  • Length - Mast Down - Extended Cab 83.33ft

  • Length - Mast Down - Standard Cab 81.69ft

  • Width - Front 17.68ft

  • Width - Rear 20.73ft

Dimensions (Approximate) - 13.7 m (44.9 ft) Mast

  • Body Length - Extended Cab 42.24ft

  • Body Length - Standard Cab 43.54ft

  • Height - Mast Up 65.39ft

  • Length - Mast Down - Extended Cab 70.87ft

  • Length - Mast Down - Standard Cab 69.23ft

  • Width - Front 17.68ft

  • Width - Rear 20.74ft

Service Packages

  • Package (1) Basic/Manual – Centralized Manual Lube; Gravity Fill for fuel and water

  • Package (2) Standard – Fast Fill for fuel and water; Automatic Lubrication System

  • Package (3) Premium – Service center for lubricant drain and fill (compressor oil, hydraulic oil, gearbox oil, engine oil, tool lubrication and grease), Automatic Lubrication System, Fast Fill for fuel and water, blowdown hose

Dust Suppression Choices

  • Choices (1) Dust curtain hydraulic lifters raise front and rear dust curtains (option) (recommended with dust collector)

  • Choices (2) Tram off spray to wet the ground around the cuttings pile (not recommended for cold weather applications)

  • Choices (3) Static dust curtains, four sides boxed in (standard)

  • High Volume Water Injection System - Not Compatible with Basic Service Package – Water tanks total capacity 3785 L (1,000 gal) maximum
    – Primary tank above deck – 1514 L (400 gal) capacity (heated for extreme cold weather)
    – Secondary tank above deck – 2271 L (600 gal) capacity deck

  • Water Injection - Standard – Water tank capacity 1514 L (400 gal)

  • Water injection and dry dust collector (option) – Water tank capacity 1514 L (400 gal)
    – 204 m³/min (7,200 cfm) dry dust collector
    – Self-cleaning filters, with auto-eject dust chute

Tool Package Rotary

  • Components (1) Roller deck bushing

  • Components (2) Pipe positioner inserts

  • Components (3) Deck wrench, sliding

  • Components (4) Top Sub, or Shock sub and cross over adapter (option)

  • Components (5) Bit sub

  • Components (6) Pipe wiper seal

Cooling

  • Components (1) Coolers with easy cleaning access

  • Components (2) Separate engine cooling module

  • Components (3) Replaceable cooler core sections

  • Components (4) Automatic variable speed fan control

  • Features Functional in ambient temperature of 52° C (125° F)

Overhead Winch System (optional)

  • Cable Diameter 0.5in

  • Capacity Rating 4000lb

  • Note Variable speed control

  • Winch Reach - Past The Drill Deck 20ft

Rotary Head Top Drive System

  • Components (1) Spindle with 168 mm (6.625 in) API regular thread and splined collar

  • Components (2) Rotation gear box with dual motor arrangement, up to 160 rpm, and 16 000 N∙m (11,800 lbf-ft) of torque

  • Components (3) Rotary torque control

  • Components (4) Virtual rotary head travel stops and interlocks

Frame Access Choices

  • Choice (1) Fixed access ladder to the cab area

  • Choice (2) Cascading, hydraulic stairs to cab area (option) – includes jack and tram interlock that activates when the stairs are down

  • Choice (3) Cab perimeter walkway available with either choice

Weights - 13.7 m (44.9 ft) Mast

  • Working Weight Range - Minimum/Maximum 75 800/97 000 kg (167,110/213,848 lb)

Features
